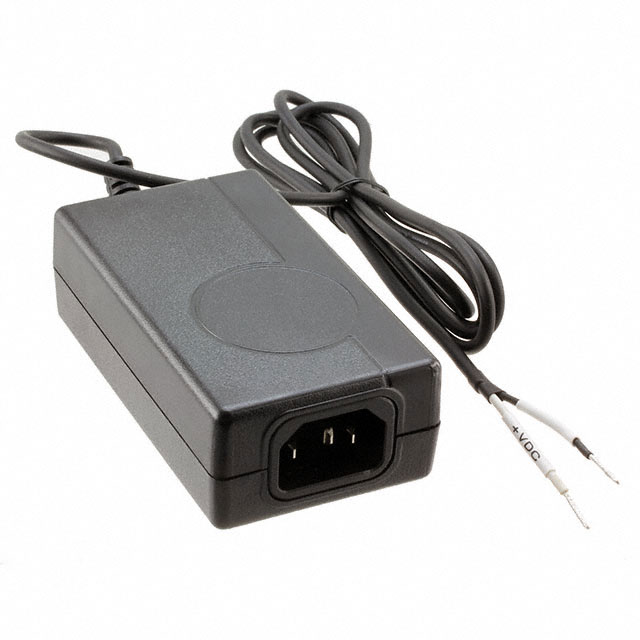

TE30A2465F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 32W
Deep-Dive with AI
Search across all available documentation for this part.
TE30A2465F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 32W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TE30A2465F01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CB, CE, DEMKO |
| Cord Length | 1.45 m |
| Cord Length | 57 " |
| Current - Output (Max) [Max] | 1.33 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Stripped, Tinned Wire Leads |
| Power (Watts) | 32 W |
| Region Utilized | International |
| Size / Dimension [x] | 95.5 mm |
| Size / Dimension [x] | 3.76 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [z] | 31 mm |
| Size / Dimension [z] | 1.22 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
| Weight | 0.551 lb |
| Weight | 249.93 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TE30A2465 Series
24V 32 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
