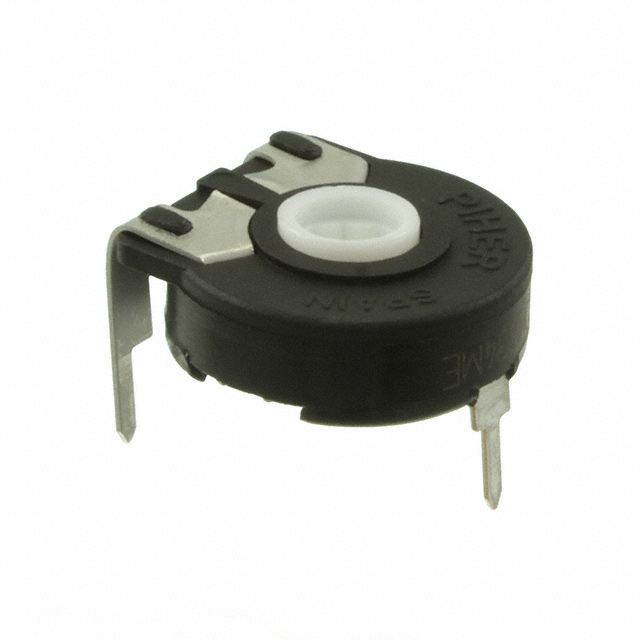

PT15NV15-105A2020

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.25W PC PIN TOP

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.25W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Temperature Coefficient	Resistive Material	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Mounting Type	Adjustment Type	Termination Style	Power (Watts)	Power (Watts)	Number of Turns
Amphenol Piher Sensing Systems PT15NV15-104A2020-E-S	100 kOhms	300 ppm/°C	Carbon	15 mm	0.591 in	20 %	Through Hole	Top Adjustment	PC Pins	0.25 W	250 mW	1
Amphenol Piher Sensing Systems PT15NV15-105A2020	1 MOhms	300 ppm/°C	Carbon	15 mm	0.591 in	20 %	Through Hole	Top Adjustment	PC Pins	0.25 W	250 mW	1
Amphenol Piher Sensing Systems PT15NV15-103A2020-S	10000 Ohms	300 ppm/°C	Carbon	15 mm	0.591 in	20 %	Through Hole	Top Adjustment	PC Pins	0.25 W	250 mW	1
Amphenol Piher Sensing Systems PT15NV15-103A2020-E-S	10000 Ohms	300 ppm/°C	Carbon	15 mm	0.591 in	20 %	Through Hole	Top Adjustment	PC Pins	0.25 W	250 mW	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 MOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
