MAP-57-50

Active

Amphenol NEXUS Technologies

CONN PLUG FMALE 7POS SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol NEXUS Technologies

CONN PLUG FMALE 7POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MAP-57-50

Applications	Communication Systems, Military, Audio, Video
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	0.5 A
Fastening Type	Bayonet Lock
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Passivated
Shell Material	Stainless Steel
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Connector Type	Orientation	Number of Positions	Voltage Rating	Shell Material	Primary Material	Current Rating (Amps)	Contact Material	Mounting Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Shell Finish	Fastening Type	Color	Shielding	Contact Finish - Mating
Amphenol NEXUS Technologies MAP-57-50	Female Sockets Plug	Keyed	7	60 VDC	Stainless Steel	Metal	0.5 A	Brass	Free Hanging (In-Line)	Thermoplastic	85 °C	-55 °C	Audio Communication Systems Military Video	Passivated	Bayonet Lock	Black Silver	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

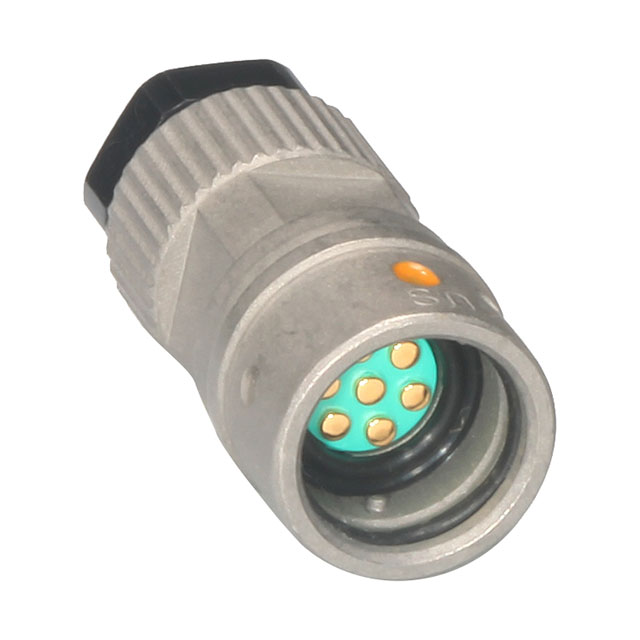

7 Position Circular Connector Plug, Female Sockets Solder Cup
