02011601105

Active

HARTING Technology Group

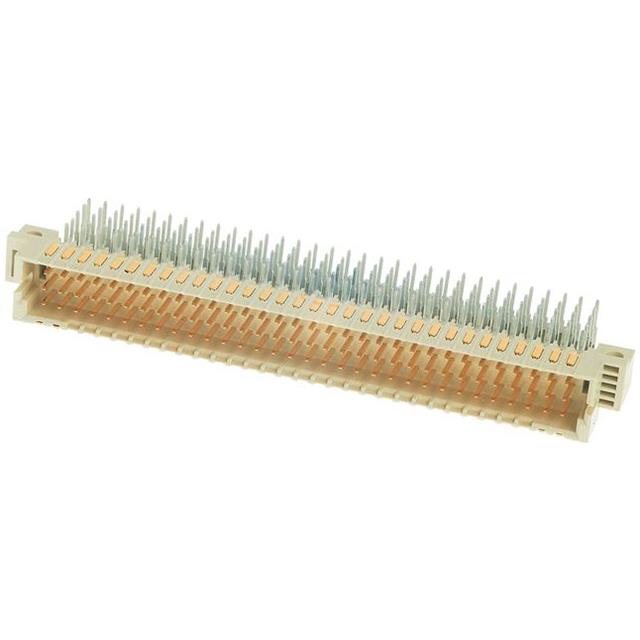

DIN 41612 CONNECTOR, HAR-BUS 64 SERIES, 160 CONTACTS, HEADER, 2.54 MM, 5 ROW, Z + A + B + C + D

Search across all available documentation for this part.

Active

HARTING Technology Group

DIN 41612 CONNECTOR, HAR-BUS 64 SERIES, 160 CONTACTS, HEADER, 2.54 MM, 5 ROW, Z + A + B + C + D

Technical Specifications

Parameters and characteristics for this part

Specification	02011601105

Connector Type	Header, Male Pins
Level, Class	1
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	160
Number of Positions [custom]	96
Number of Positions [custom]	64
Number of Positions Loaded	All
Number of Rows	5
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Termination	Number of Positions Loaded	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Level, Class	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type
HARTING Technology Group 02021601301	Press-Fit	All	160	96	64	1	2.54 mm	0.1 in	Gold	5	Receptacle Female Sockets	-40 °C	105 ░C	UL94 V-0	Through Hole
HARTING Technology Group 02011601105	Solder	All	160	96	64	1	2.54 mm	0.1 in		5	Header Male Pins			UL94 V-0	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 (96 + 64 Ground) Position Din Connector Header, Male Pins Through Hole, Right Angle
