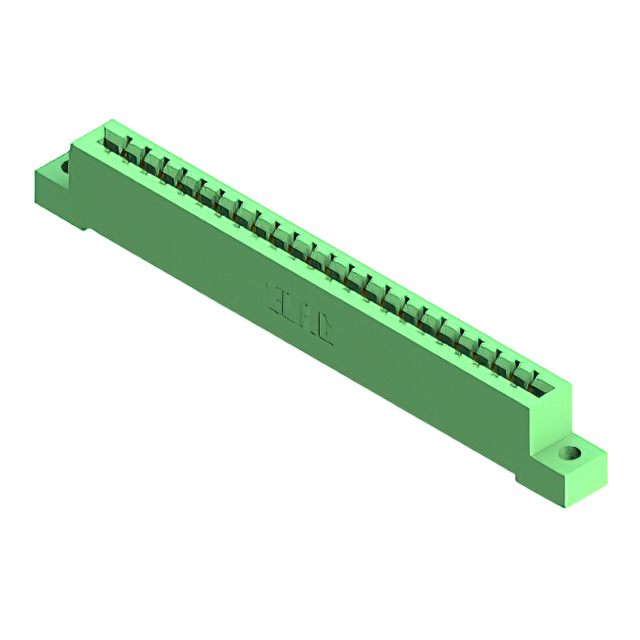

837-023-500-104
ActiveEDAC Inc.
837 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-023-500-104
ActiveEDAC Inc.
837 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-023-500-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
837-023 Series
...
| Part | Material - Insulation | Number of Positions | Card Type | Gender | Number of Positions/Bay/Row [custom] | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Type | Number of Rows | Termination Rows | Contact Material | Read Out | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | Floating Bobbin Flush Mount | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | Green | 0.116 in | 2.95 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | 0.156 in | 3.96 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | Top Mount Opening Unthreaded | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | 0.156 in | 3.96 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | Floating Bobbin Flush Mount | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | 0.116 in | 2.95 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | 0.128 " | 3.25 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 23 | Non Specified - Single Edge | Female | 23 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | 1 | 1 | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
