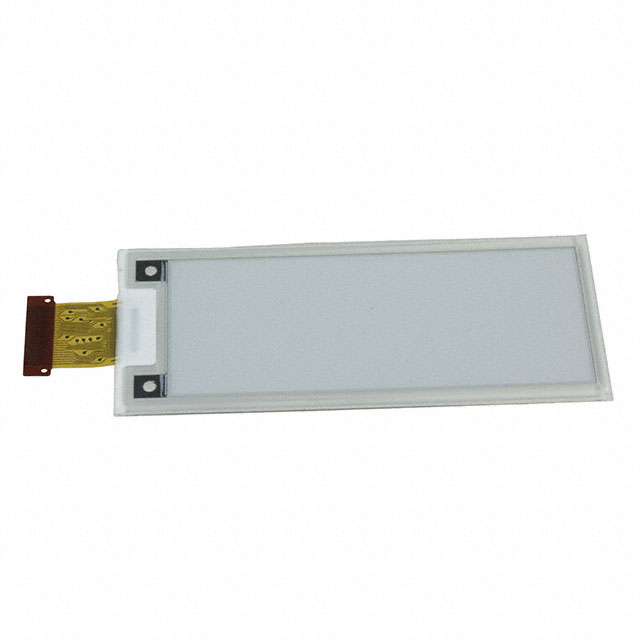

E2287CS051

Obsolete

Pervasive Displays

2.87" EPD A-MB WITH ITC

Search across all available documentation for this part.

Obsolete

Pervasive Displays

2.87" EPD A-MB WITH ITC

Technical Specifications

Parameters and characteristics for this part

Specification	E2287CS051

Background Color	White
Backlight	Without Backlight
Diagonal Screen Size	72.89 mm
Diagonal Screen Size	2.87 in
Display Mode	Reflective
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.23 mm
Dot Pitch [y]	0.23 mm
Dot Pixels [x]	296
Dot Pixels [y]	128
Graphics Color	Black
Interface	SPI
Viewing Area [x]	66.9 mm
Viewing Area [y]	29.06 mm

Part	Diagonal Screen Size	Diagonal Screen Size	Backlight	Interface	Display Type	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [y]	Viewing Area [x]	Background Color	Display Mode
Pervasive Displays E2287PS091	72.89 mm	2.87 in	Without Backlight	SPI	TFT - Color	Black White	128	296	0.23 mm	0.23 mm
Pervasive Displays E2287CS051	72.89 mm	2.87 in	Without Backlight	SPI	TFT - Electronic Paper Display (EPD)	Black	128	296	0.23 mm	0.23 mm	29.06 mm	66.9 mm	White	Reflective
Pervasive Displays E2287ES051	72.89 mm	2.87 in	Without Backlight	SPI	TFT - Electronic Paper Display (EPD)	Black Red	128	296	0.23 mm	0.23 mm	29.06 mm	66.9 mm	White	Reflective
Pervasive Displays E2287CS091	73.66 mm	2.9 in		SPI	TFT - Color	Black White	128	296	0.23 mm	0.23 mm	29.06 mm	66.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 2.87" (72.89mm) 296 x 128
