CONSMB002-G

Active

TE Connectivity Linx

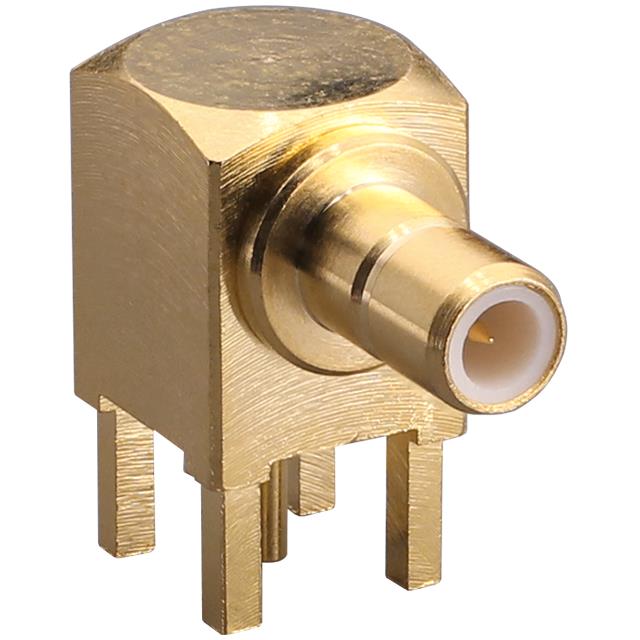

CONN SMB JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN SMB JACK R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMB002-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	750 VDC

Part	Shield Termination	Body Finish	Voltage Rating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Impedance	Mounting Type	Number of Ports	Connector Style	Center Contact Material	Dielectric Material	Mating Cycles	Fastening Type	Connector Type	Housing Color	Frequency - Max [Max]	Contact Termination
TE Connectivity Linx CONSMB002-G	Solder	Gold	750 VDC	Brass	-65 ░C	165 °C	Gold	50 Ohms	Through Hole Right Angle	1	SMB	Brass	Polytetrafluoroethylene (PTFE)	500	Snap-On	Jack Male Pin	Gold	4 GHz	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
