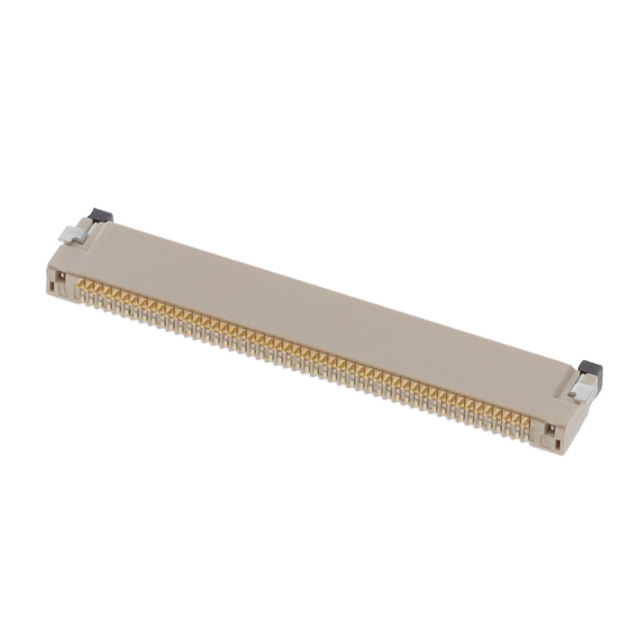

10085901-5015EHLF

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 50POS 0.5MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 50POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	10085901-5015EHLF

Actuator Color	Black
Actuator Material	Thermoplastic, Halogen Free
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Natural
Housing Material	Thermoplastic, Halogen Free
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Voltage Rating	Material Flammability Rating	Flat Flex Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Locking Feature	Mating Cycles	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Connector/Contact Type	Cable End Type	Actuator Material	Actuator Color	Housing Material	Contact Material	Contact Finish Thickness	Height Above Board	Height Above Board	Housing Color	Termination	Mounting Type	Contact Finish	FFC, FCB Thickness [z]
Amphenol ICC (FCI) 10085901-70115ELF	50 V	UL94 V-0	FFC FPC	0.5 mm	0.02 in	0.5 A	Flip Lock	20	70	85 °C	-55 °C	0.3 mm	Contacts Bottom	Notched Tapered	Thermoplastic	Brown	Thermoplastic	Copper Alloy	Flash	0.079 in	2 mm	Natural	Solder	Surface Mount Right Angle	Gold
Amphenol ICC (FCI) 10085901-60115ELF	50 V	UL94 V-0	FFC FPC	0.5 mm	0.02 in	0.5 A	Slide Lock	20	60	85 °C	-55 °C		Contacts Bottom	Straight Tapered	Thermoplastic	Black	Thermoplastic	Copper Alloy	Flash	0.079 in	2 mm	Natural	Solder	Surface Mount Right Angle	Gold	0.3 mm 0.33 mm
Amphenol ICC (FCI) 10085901-60115EHLF	50 V	UL94 V-0	FFC FPC	0.5 mm	0.02 in	0.5 A	Slide Lock	20	60	85 °C	-55 °C	0.3 mm	Contacts Bottom	Tapered	Thermoplastic Halogen Free	Beige	Thermoplastic Halogen Free	Copper Alloy	Flash	0.079 in	2 mm	Natural	Solder	Surface Mount Right Angle	Gold
Amphenol ICC (FCI) 10085901-5015EHLF	50 V	UL94 V-0	FFC FPC	0.5 mm	0.02 in	0.5 A	Slide Lock	20	50	85 °C	-55 °C		Contacts Bottom	Straight Tapered	Thermoplastic Halogen Free	Black	Thermoplastic Halogen Free	Copper Alloy	Flash	0.079 in	2 mm	Natural	Solder	Surface Mount Right Angle	Gold	0.3 mm 0.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
