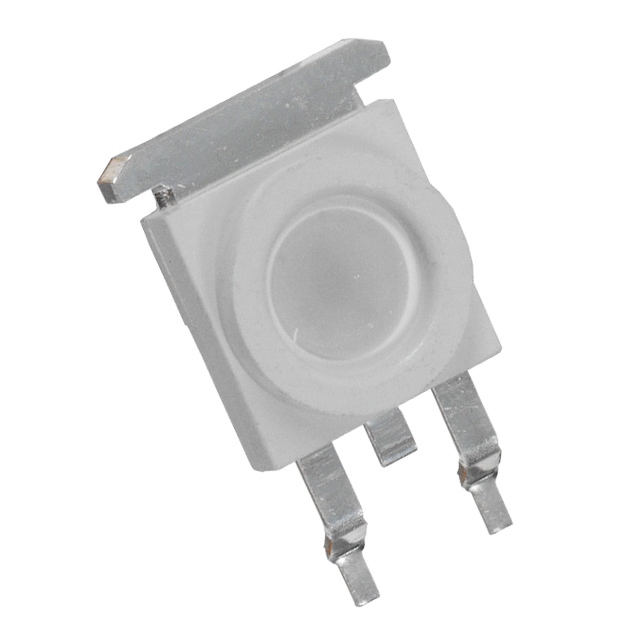

SML-LX1610SIC/A

Active

Lumex Opto/Components Inc.

LED TITANBRITE RED 625NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX1610SIC/A

Active

Lumex Opto/Components Inc.

LED TITANBRITE RED 625NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX1610SIC/A

Color	Red
Current - Max [Max]	350 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	0.13 "
Height - Seated (Max) [Max] [z]	3.3 mm
Mounting Type	Surface Mount
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Size / Dimension [x]	0.335 "
Size / Dimension [x]	8.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Supplier Device Package	SMD
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	625 nm

SML-LX1610 Series

Part	Supplier Device Package	Lumens/Watt @ Current - Test	Color	Wavelength	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Package / Case	Current - Test	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CCT (K)	CCT (K) [Min]	CCT (K) [Max]	Flux @ 25°C, Current - Test	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Wavelength	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]
Lumex Opto/Components Inc. SML-LX1610USBC/A	SMD	19 lm/W	Blue	470 nm	350 mA	0.13 "	3.3 mm	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	350 mA	110 °	0.335 "	8.5 mm	0.335 in	8.5 mm	3 V	20 lm
Lumex Opto/Components Inc. SML-LX1610UWC/A		24 lm/W	Cool White		350 mA	0.13 "	3.3 mm	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	350 mA	110 °	0.417 in	10 mm	0.394 in	10.6 mm	3.5 V		6000 K	3000 K	9000 K	30 lm
Lumex Opto/Components Inc. SML-LX1610RGBW/A	SMD		Blue Green Red			0.13 "	3.3 mm	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3		110 °	0.335 "	8.5 mm	0.335 in	8.5 mm							25 lm	8 lm	25 lm	470nm Blue 525nm Green 626nm Red	300 mA	350 mA	350 mA	350 mA	350 mA	300 mA	2.1 V	3.5 V	3.5 V	40 lm/W	20 lm/W	7 lm/W
Lumex Opto/Components Inc. SML-LX1610SIC/A	SMD		Red	625 nm	350 mA	0.13 "	3.3 mm	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	350 mA	110 °	0.335 "	8.5 mm	0.335 in	8.5 mm	2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SML-LX1610 Series

LED Lighting Color TitanBrite™ Red 625nm (Typ) TO-252-3, DPAK (2 Leads + Tab), SC-63
