Q-0600R000S.75M
ActiveAmphenol Custom Cable

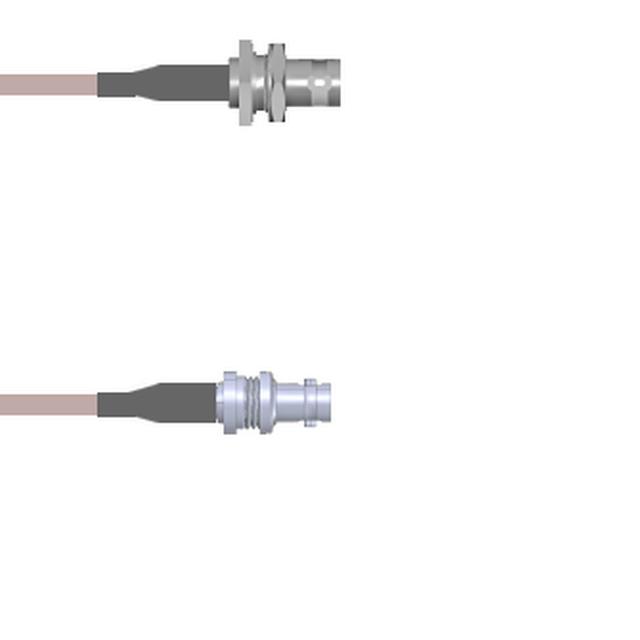

CBL ASSY BNC-HDBNC JK-JK 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0600R000S.75M
ActiveAmphenol Custom Cable
CBL ASSY BNC-HDBNC JK-JK 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0600R000S.75M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-179 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 75 Ohms |
| Style | BNC to HD-BNC |
Q-0600R0 Series
| Part | Length | Length | Length | Features | Overall Impedance | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | 2nd Contact Gender | 1st Contact Gender | Cable Type | Color | Frequency - Max [Max] | 1st Connector Mounting Type | 1st Connector | 1st Connector Mounting Feature | Style | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 2.7 m | 9 ft | 108 in | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | ||
Amphenol Custom Cable | 1 m | 3.3 ft | 39.4 in | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | ||
Amphenol Custom Cable | 1.5 m | 5 ft | 5 ' | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | ||
Amphenol Custom Cable | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | 457.2 mm | 457.2 mm | |||
Amphenol Custom Cable | 2.1 m | 7 ft | 84 in | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | ||
Amphenol Custom Cable | 2.5 m | 8.2 ' | 98.4 in | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | ||
Amphenol Custom Cable | 91.44 cm | 36 in | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | |||
Amphenol Custom Cable | 750 mm | 29.53 " | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | |||
Amphenol Custom Cable | 609.6 mm | 24 " | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC | |||
Amphenol Custom Cable | 1.8 m | 6 ft | 72 in | Shielded | 75 Ohms | Panel Mount | Bulkhead - Front Side Nut | Female | Female | RG-179 | Copper | 4 GHz | Panel Mount | BNC Jack | Bulkhead - Front Side Nut | BNC to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 118.66 | |
| 25 | $ 116.34 | |||
| 50 | $ 114.03 | |||
| 100 | $ 111.72 | |||
| 250 | $ 109.40 | |||
Description
General part information
Q-0600R0 Series
Cable Assembly Coaxial BNC to HD-BNC RG-179 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
