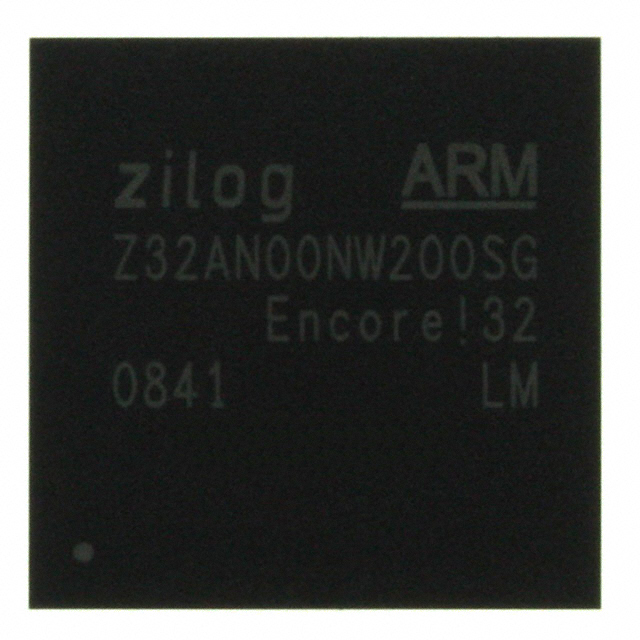

Z32AN00NW200SG

Obsolete

Zilog

IC MCU 32BIT ROMLESS 256BGA

Search across all available documentation for this part.

Obsolete

Zilog

IC MCU 32BIT ROMLESS 256BGA

Technical Specifications

Parameters and characteristics for this part

Specification	Z32AN00NW200SG

Core Processor	ARM9®
Core Size [Max]	32 Bit
Core Size [Min]	16 Bit
Data Converters [custom]	10
Data Converters [custom]	4
Mounting Type	Surface Mount
Number of I/O	76
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	256-LBGA
Peripherals	Magnetic Card Reader, WDT, LCD, DMA, POR, PWM
Program Memory Type	ROMless
RAM Size	64 K
Speed	200 MHz
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

Part	Data Converters [custom]	Data Converters [custom]	Program Memory Type	Core Size [Min]	Core Size [Max]	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Processor	Mounting Type	Speed	Oscillator Type	Number of I/O	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Zilog Z32AN00NW200SG	10	4	ROMless	16 Bit	32 Bit	DMA LCD Magnetic Card Reader POR PWM WDT	3.6 V	1.71 V	ARM9®	Surface Mount	200 MHz	Internal	76	64 K	85 °C	-40 °C	256-LBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM9® Encore!® 32 Microcontroller IC 16/32-Bit 200MHz ROMless
