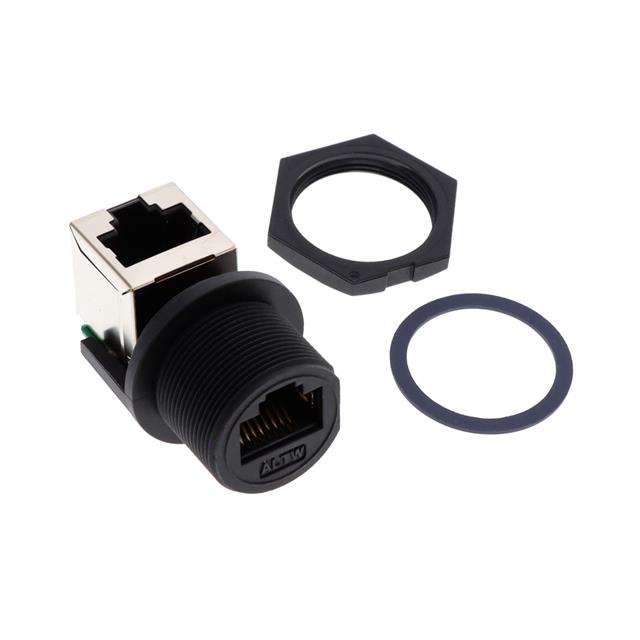

RCP-5SPFFV-SCU7001

Active

Amphenol LTW

RJ, MIDDLE SIZE, PLASTIC, 1.5A, CAT 5E, CIRCULAR, SCREW THREAD, JACK 90 (VERTICAL), RECEPTACLE, IP67 UNMATED ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCP-5SPFFV-SCU7001

Active

Amphenol LTW

RJ, MIDDLE SIZE, PLASTIC, 1.5A, CAT 5E, CIRCULAR, SCREW THREAD, JACK 90 (VERTICAL), RECEPTACLE, IP67 UNMATED ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCP-5SPFFV-SCU7001

Contact Finish	Gold
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut
Mounting Type	Bulkhead, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shielding	Shielded
Type	Coupler

RCP-5SPFFV Series

Part	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Mounting Type	Convert To (Adapter End)	Type	Housing Material	Mounting Feature	Convert From (Adapter End)	Contact Finish	Contact Material	Contact Finish Thickness	Features
Amphenol LTW RCP-5SPFFV-SCU7001	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold
Amphenol LTW RCP-5SPFFV-TCM7001	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold	Phosphor Bronze	Flash	Circular Bayonet Coupling
Amphenol LTW RCP-5SPFFV-TCM7002	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold			Circular Bayonet Coupling
Amphenol LTW RCP-5SPFFV-SCU7002	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold
Amphenol LTW RCP-5SPFFV-SCM7002	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold
Amphenol LTW RCP-5SPFFV-TSU7001	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold	Phosphor Bronze	Flash	Circular Bayonet Coupling
Amphenol LTW RCP-5SPFFV-SCM7001	IP67 - Dust Tight Waterproof	Shielded	-40 °C	105 ░C	Cat5e	Bulkhead Panel Mount Right Angle	8p8c (RJ45) Jack	Coupler	Polyamide (PA) Nylon Glass Filled	Front Side Nut	Jack 8p8c (RJ45)	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.37
		10	$ 11.04
		25	$ 9.98
		50	$ 9.27
		100	$ 8.62
		250	$ 7.85
		500	$ 7.33
		1000	$ 6.87
Newark	Each	10	$ 10.72
		25	$ 9.75
		50	$ 9.14
		100	$ 8.78
		250	$ 8.02

Description

General part information

RCP-5SPFFV Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Shielded
