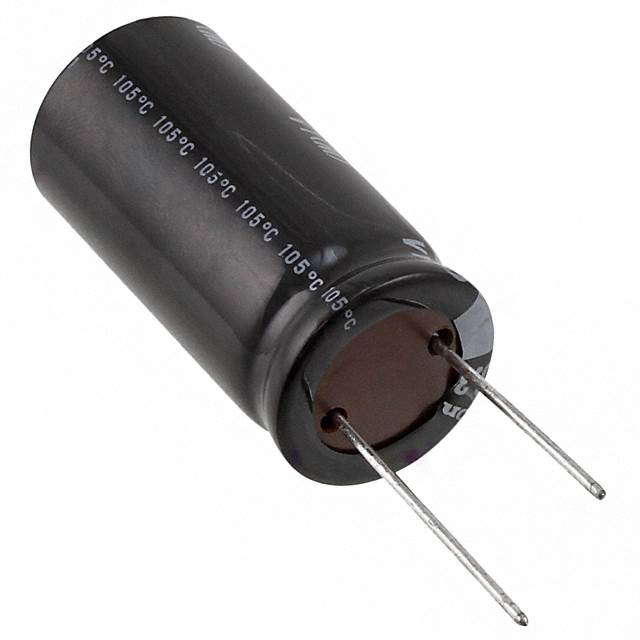

UVY2E331MRD

Obsolete

NICHICON

CAP ALUM 330UF 20% 250V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiniature Type Taping Spec Datasheet

UVY2E331MRD

Obsolete

NICHICON

CAP ALUM 330UF 20% 250V RADIAL

Deep-Dive with AI

DocumentsMiniature Type Taping Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY2E331MRD

Applications	General Purpose
Capacitance	330 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	816.5 mA
Ripple Current @ Low Frequency	710 mA
Size / Dimension [diameter]	20 mm
Size / Dimension [diameter]	0.787 in
Tolerance	20 %
Voltage - Rated	250 V

UVY2E Series

Part	Applications	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Voltage - Rated	Ripple Current @ Low Frequency	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Polarization	Capacitance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UVY2E470MHD1TO	General Purpose	20 %	0.492 in	12.5 mm	Radial Can	250 V	190 mA	Through Hole	22 mm	0.866 in	2000 Hrs	Polar	47 µF	5 mm	0.197 in	-40 °C	105 ░C
NICHICON UVY2E221MHD	General Purpose	20 %	0.709 "	18 mm	Radial Can	250 V	485 mA	Through Hole	37.5 mm	1.476 in	2000 Hrs	Polar	220 µF	7.5 mm	0.295 in	-40 °C	105 ░C	557.75 mA
NICHICON UVY2E470MHD	General Purpose	20 %	0.492 in	12.5 mm	Radial Can	250 V	190 mA	Through Hole	22 mm	0.866 in	2000 Hrs	Polar	47 µF	5 mm	0.197 in	-40 °C	105 ░C
NICHICON UVY2E101MHD1TN	General Purpose	20 %	0.63 in	16 mm	Radial Can	250 V	310 mA	Through Hole	27 mm	1.063 in	2000 Hrs	Polar	100 µF	7.5 mm	0.295 in	-40 °C	105 ░C	356.5 mA
NICHICON UVY2E101MHD	General Purpose	20 %	0.63 in	16 mm	Radial Can	250 V	310 mA	Through Hole	27 mm	1.063 in	2000 Hrs	Polar	100 µF	7.5 mm	0.295 in	-40 °C	105 ░C	356.5 mA
NICHICON UVY2E100MPD1TD	General Purpose	20 %	0.394 in	10 mm	Radial Can	250 V	71 mA	Through Hole			2000 Hrs	Polar	10 µF	5 mm	0.197 in	-40 °C	105 ░C	81.65 mA	14 mm	0.551 "
NICHICON UVY2E100MPD	General Purpose	20 %	0.394 in	10 mm	Radial Can	250 V	71 mA	Through Hole			2000 Hrs	Polar	10 µF	5 mm	0.197 in	-40 °C	105 ░C	81.65 mA	14 mm	0.551 "
NICHICON UVY2E331MRD	General Purpose	20 %	0.787 in	20 mm	Radial Can	250 V	710 mA	Through Hole			2000 Hrs	Polar	330 µF	10 mm	0.394 in	-40 °C	105 ░C	816.5 mA		1.654 in	42 mm
NICHICON UVY2E3R3MED	General Purpose	20 %	0.248 in	6.3 mm	Radial Can	250 V	28 mA	Through Hole			1000 Hrs	Polar	3.3 µF	2.5 mm	0.098 in	-40 °C	105 ░C	32.2 mA		0.492 in	12.5 mm
NICHICON UVY2E220MPD	General Purpose	20 %	0.394 in	10 mm	Radial Can	250 V	105 mA	Through Hole	22 mm	0.866 in	2000 Hrs	Polar	22 µF	5 mm	0.197 in	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.35

Description

General part information

UVY2E Series

330 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Miniature Type Taping Spec

Datasheet
