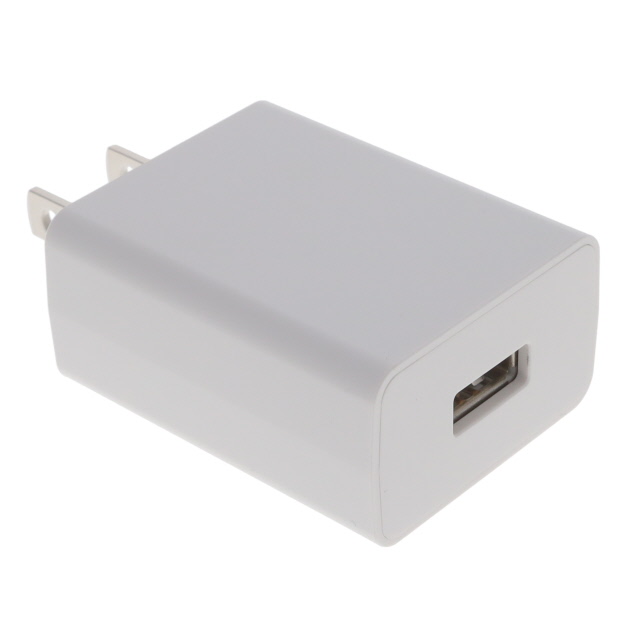

MQ05A-050AW-H

Active

Phihong USA

5W MEDICAL ADAPTER FOR US

Search across all available documentation for this part.

Active

Phihong USA

5W MEDICAL ADAPTER FOR US

Technical Specifications

Parameters and characteristics for this part

Specification	MQ05A-050AW-H

Applications	Medical
Approval Agency	ES, ANSI/AAMI, IEC, cSGSus, PSB
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	30 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	1.49 in
Size / Dimension [x]	37.9 mm
Size / Dimension [y]	0.88 "
Size / Dimension [y]	22.3 mm
Size / Dimension [z]	1.85 in
Size / Dimension [z]	47 mm
Standard Number	60601-1-11, 60950-1, 62368-1, 60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Current - Output (Max) [Max]	Region Utilized	Approval Agency	No Load Power Consumption [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Power (Watts)	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output	Form	Applications
Phihong USA MQ05A-050AW-H	1 A	North America	ANSI/AAMI cSGSus ES IEC PSB	30 mW	40 °C	0 °C	60601-1 60601-1-11 60950-1 62368-1	5 W	NEMA 1-15P	90 VAC	264 VAC	CoC Tier 2 Level VI	Fixed Blade	0.88 "	1.49 in	1.85 in	47 mm	22.3 mm	37.9 mm	5 V	Wall Mount (Class II)	Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
