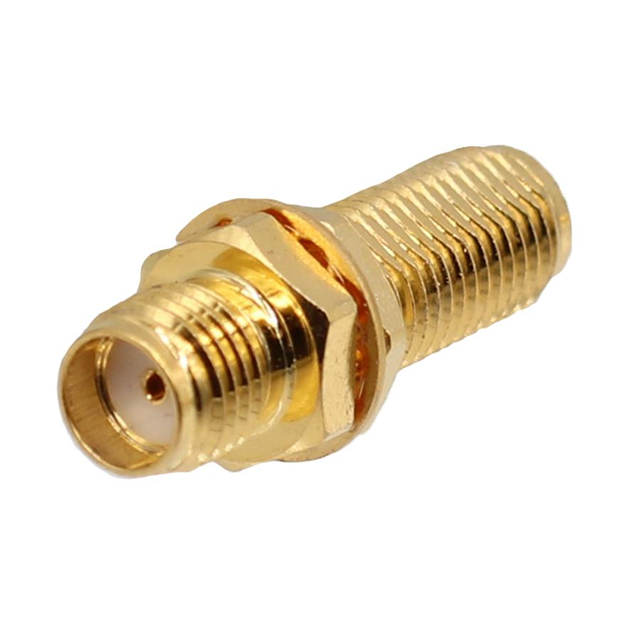

CGM-1180-FB-SMA-09
ActiveCinch Connectivity Solutions Trompeter
COAX ADAPT SMA TO SMA
Deep-Dive with AI
Search across all available documentation for this part.
CGM-1180-FB-SMA-09
ActiveCinch Connectivity Solutions Trompeter
COAX ADAPT SMA TO SMA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CGM-1180-FB-SMA-09 |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.35 | |
| 10 | $ 13.05 | |||
| 25 | $ 12.23 | |||
| 50 | $ 11.65 | |||
| 100 | $ 11.09 | |||
| 250 | $ 10.40 | |||
| 500 | $ 9.90 | |||
| 1000 | $ 9.43 | |||
Description
General part information
CGM-1180 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
