ZST-117-07-T-D-815

Active

Samtec Inc.

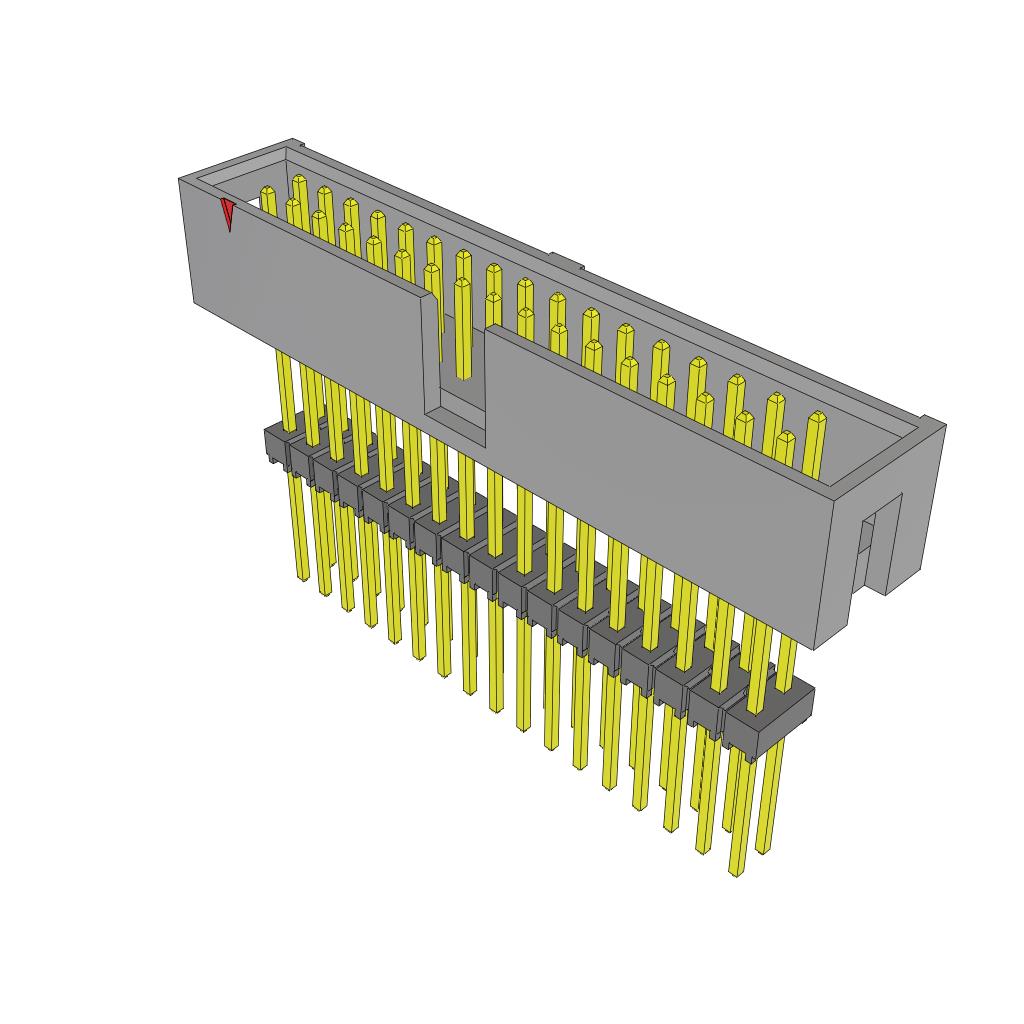

CONN HDR .100" 34POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZST Datasheet Datasheet

ZST-117-07-T-D-815

Active

Samtec Inc.

CONN HDR .100" 34POS

Deep-Dive with AI

DocumentsZST Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZST-117-07-T-D-815

Connector Type	Elevated, Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.415 in
Contact Length - Post	10.54 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	20.7 mm
Insulation Height	0.815 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	1.23 in
Overall Contact Length	31.24 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

ZST-117 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Shape	Number of Positions Loaded	Insulation Material	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Number of Positions	Shrouding	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Material	Style	Number of Rows	Connector Type	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
Samtec Inc. ZST-117-08-G-D-1215
Samtec Inc. ZST-117-02-T-D-615
Samtec Inc. ZST-117-01-G-D-540
Samtec Inc. ZST-117-09-G-D-840	14.99 mm	0.59 in	0.84 in	21.34 mm	6.35 mm	0.25 in	Gold	10 çin	0.25 çm	Male Pin	Square	All	Polyester Glass Filled	Through Hole	0.1 in	2.54 mm	Push-Pull	Solder	34	Shrouded - 4 Wall	Gold	-55 °C	125 °C	UL94 V-0	Keying Slot	2.54 mm	0.1 in	3 µin	0.076 µm	Black	Phosphor Bronze	Board to Cable/Wire	2	Elevated Header
Samtec Inc. ZST-117-06-G-D-600
Samtec Inc. ZST-117-01-L-D-450					6.35 mm	0.25 in	Gold	10 çin	0.25 çm	Male Pin	Square	All	Polyester Glass Filled	Through Hole	0.1 in	2.54 mm	Push-Pull	Solder	34	Shrouded - 4 Wall	Tin	-55 °C	125 °C	UL94 V-0	Keying Slot	2.54 mm	0.1 in			Black	Phosphor Bronze	Board to Cable/Wire	2	Elevated Header	11.43 mm	0.45 in	0.63 "	16 mm	0.18 in	4.57 mm
Samtec Inc. ZST-117-04-S-D-840
Samtec Inc. ZST-117-06-G-D-515					6.35 mm	0.25 in	Gold	10 çin	0.25 çm	Male Pin	Square	All	Polyester Glass Filled	Through Hole	0.1 in	2.54 mm	Push-Pull	Solder	34	Shrouded - 4 Wall	Gold	-55 °C	125 °C	UL94 V-0	Keying Slot	2.54 mm	0.1 in	3 µin	0.076 µm	Black	Phosphor Bronze	Board to Cable/Wire	2	Elevated Header					0.615 in	15.62 mm	0.515 "	13.08 mm	28.7 mm	1.13 in
Samtec Inc. ZST-117-02-T-D-640
Samtec Inc. ZST-117-07-T-D-815					6.35 mm	0.25 in				Male Pin	Square	All	Polyester Glass Filled	Through Hole	0.1 in	2.54 mm	Push-Pull	Solder	34	Shrouded - 4 Wall	Tin	-55 °C	105 ░C	UL94 V-0	Keying Slot	2.54 mm	0.1 in			Black	Phosphor Bronze	Board to Cable/Wire	2	Elevated Header	20.7 mm	0.815 in			0.415 in	10.54 mm			31.24 mm	1.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.67

Description

General part information

ZST-117 Series

Connector Header Through Hole 34 position 0.100" (2.54mm)

Documents

Technical documentation and resources

ZST Datasheet

Datasheet
