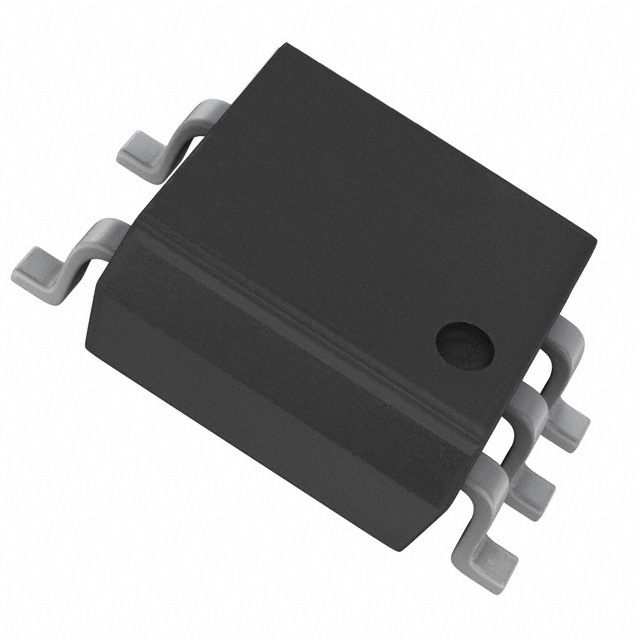

PC410L0YIP

Obsolete

Sharp Microelectronics

OPTOISO 3.75KV OPEN COLL 5MFP

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

OPTOISO 3.75KV OPEN COLL 5MFP

Technical Specifications

Parameters and characteristics for this part

Specification	PC410L0YIP

Common Mode Transient Immunity (Min) [Min]	10 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel	50 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Rise / Fall Time (Typ) [custom]	20 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	5-MFP
Voltage - Forward (Vf) (Typ)	1.6 V
Voltage - Isolation	3750 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Supplier Device Package	Input Type	Current - Output / Channel	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Forward (Vf) (Typ)	Data Rate	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - DC Forward (If) (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Voltage - Isolation
Sharp Microelectronics PC410L0YIP	0	1	5-MFP	DC	50 mA	1	85 °C	-40 °C	4.5 V	5.5 V	1.6 V	10 Mbps	75 ns	75 ns	20 mA	10 kV/µs	Surface Mount	20 ns	10 ns	Open Collector	3750 Vrms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 5-MFP
