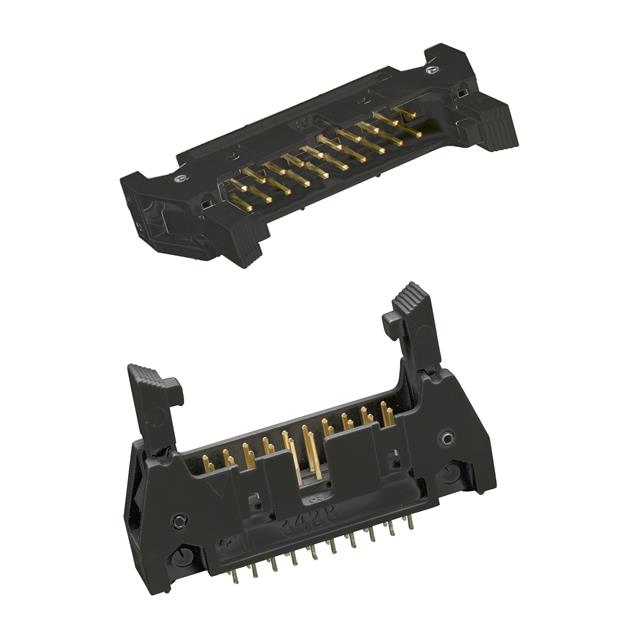

N3429-CES80128

Active

3M (TC)

3M PAK 100 4-WALL HEADER, N3429-

Deep-Dive with AI

Search across all available documentation for this part.

N3429-CES80128

Active

3M (TC)

3M PAK 100 4-WALL HEADER, N3429-

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3429-CES80128

null

N3429 Series

Part	Mounting Type	Shrouding	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Material	Contact Finish - Post	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Shape	Number of Positions	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating [x]	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Fastening Type
3M (TC) N3429-6302	Through Hole	Shrouded - 4 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin-Lead	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks Long
3M (TC) N3429-2002RB	Through Hole	Shrouded - 3 Wall	UL94 V-0	Black	17.4 mm	0.685 "	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Push-Pull
3M (TC) N3429-L202RB	Through Hole Right Angle	Shrouded - 4 Wall	UL94 V-0	Black	16.76 mm	0.66 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header Stackable (2)	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square		2			6.1 mm	0.24 in		Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks Short
3M (TC) N3429-CES80128
3M (TC) N3429-D202RB	Through Hole Right Angle	Shrouded - 3 Wall	UL94 V-0	Black	16.76 mm	0.66 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header Stackable (2)	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square		2			6.1 mm	0.24 in		Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks Short
3M (TC) N3429-6202	Through Hole	Shrouded - 4 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin-Lead	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks Short
3M (TC) N3429-2202RB	Through Hole	Shrouded - 3 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks Short
3M (TC) N3429-5003RB	Through Hole Right Angle	Shrouded - 4 Wall	UL94 V-0	Black	8.64 mm	0.34 in	3.94 mm	0.155 "	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2			6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Push-Pull
3M (TC) N3429-2302RB	Through Hole	Shrouded - 3 Wall	UL94 V-0	Black	17.27 mm	0.68 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2	0.652 in	16.56 mm	6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Latch Lock/Eject Hooks Long
3M (TC) N3429-1002RB	Through Hole Right Angle	Shrouded - 3 Wall	UL94 V-0	Black	7.87 mm	0.31 in	2.84 mm	0.112 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Tin	Header	200 µin	5.08 µm	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	All	Square	26	2			6.1 mm	0.24 in	1.75 A	Board to Board Cable	0.1 in	2.54 mm	Solder	105 ░C	-55 °C	Male Pin	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.51
LCSC	Piece	1	$ 2.38
		250	$ 0.95
		500	$ 0.92
		1000	$ 0.90

Description

General part information

N3429 Series

Connector Header position

Documents

Technical documentation and resources

No documents available
