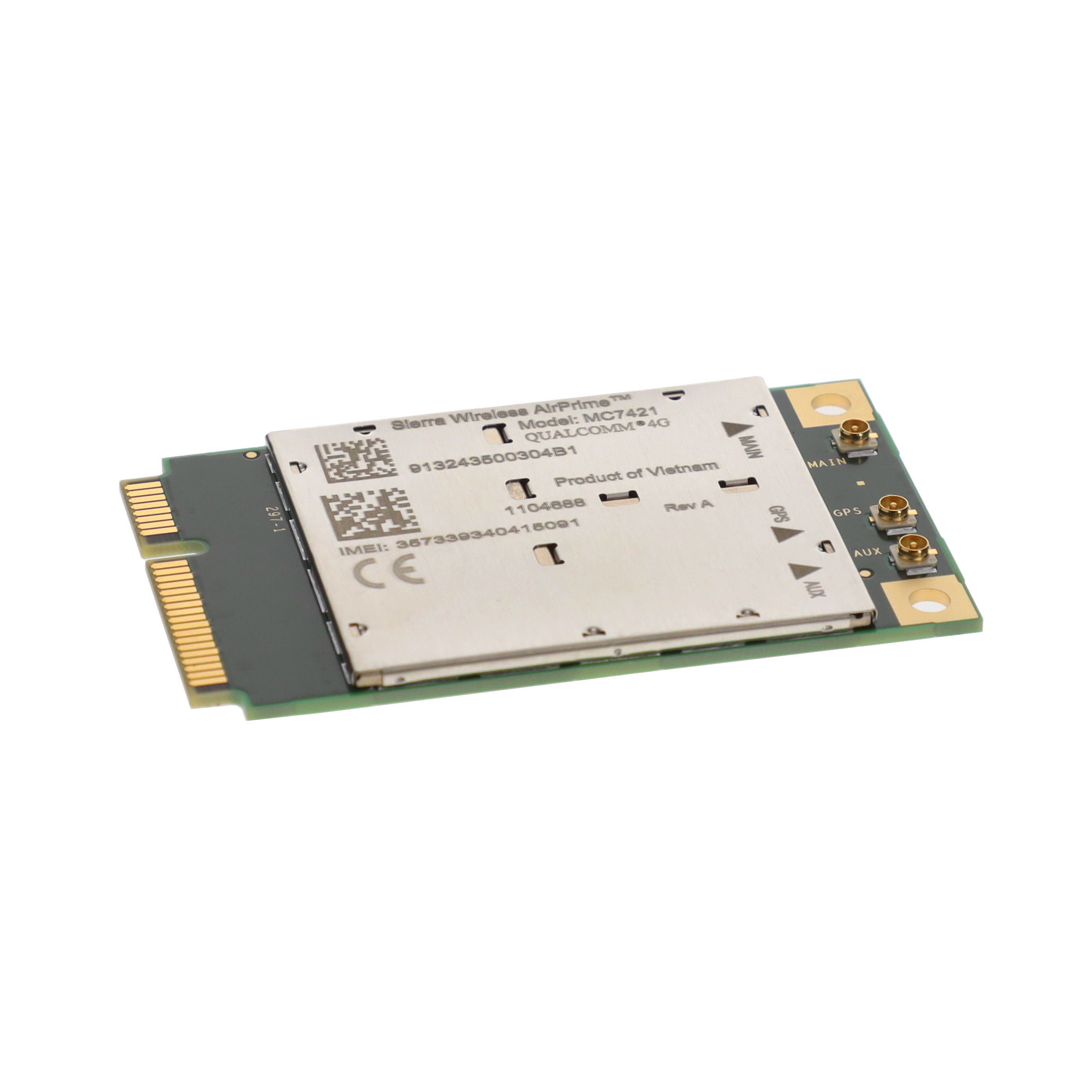

MC7421_1104688

Active

Semtech Corporation

RF TXRX MOD CEL/NAV CARD

Search across all available documentation for this part.

Active

Semtech Corporation

RF TXRX MOD CEL/NAV CARD

Technical Specifications

Parameters and characteristics for this part

Specification	MC7421_1104688

Antenna Type	Antenna Not Included
Data Rate	300 Mbps
Modulation	DSSS
Mounting Type	Card Edge
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Protocol	Beidou, LTE, GLONASS, GPS, Galileo, HSPA, GNSS
RF Family/Standard	Cellular, Navigation
Serial Interfaces	PCIe, USB
Utilized IC / Part	MC7421

Part	Data Rate	RF Family/Standard	Serial Interfaces	Utilized IC / Part	Package / Case	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Protocol	Antenna Type
Semtech Corporation MC7421_1104688	300 Mbps	Cellular Navigation	PCIe USB	MC7421	Module	DSSS	85 °C	-40 °C	Card Edge	Beidou Galileo GLONASS GNSS GPS HSPA LTE	Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GNSS, GPS, HSPA, LTE Transceiver Module Antenna Not Included Card Edge
