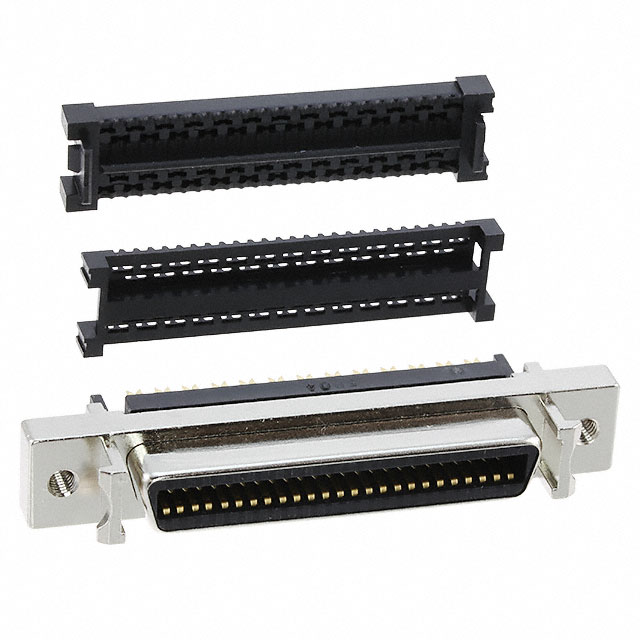

DX33AM-50S(50)

Obsolete

Hirose Electric USA, Inc.

CONN MINI HD RCPT 50P PNL MT IDC

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN MINI HD RCPT 50P PNL MT IDC

Technical Specifications

Parameters and characteristics for this part

Part	Flange Feature	Contact Finish	Number of Positions	Connector Type	Number of Rows	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Termination	Type	Mounting Type
Hirose Electric USA, Inc. DX33AM-68S(50)	Latchblocks Mating Side (M2.6)	Gold	68	Receptacle	2	Outer Shroud Contacts	0.3 Ám	11.8 Áin	IDC	Miniature High Density (HD)
Hirose Electric USA, Inc. DX33AM-50S(50)	Latchblocks Mating Side (M2.6)	Gold	50	Receptacle	2	Outer Shroud Contacts	0.3 Ám	11.8 Áin	IDC	Miniature High Density (HD)
Hirose Electric USA, Inc. DX33A-50S(50)	Latchblocks Mating Side (M2.6)	Gold	50	Receptacle	2	Outer Shroud Contacts	0.2 µm	7.87 µin	IDC	Miniature High Density (HD)	Free Hanging (In-Line)
Hirose Electric USA, Inc. DX33AM-36S(50)	Latchblocks Mating Side (M2.6)	Gold	36	Receptacle	2	Outer Shroud Contacts	0.3 Ám	11.8 Áin	IDC	Miniature High Density (HD)
Hirose Electric USA, Inc. DX33A-50S-LNA(50)	Latchblocks Mating Side Female Screwlock (M2.6)	Gold	50	Receptacle	2	Outer Shroud Contacts	0.2 µm	7.87 µin	IDC	Miniature High Density (HD)	Free Hanging (In-Line)
Hirose Electric USA, Inc. DX33A-36S(50)	Housing/Shell Latchblocks	Gold	36	Receptacle	2	Outer Shroud Contacts	0.2 µm	7.87 µin	IDC	Miniature High Density (HD)	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Receptacle Connector Miniature High Density (HD) Panel Mount IDC

Technical documentation and resources
