EVB310

Active

Allegro MicroSystems

EVAL BOARD FOR CT310

Search across all available documentation for this part.

Active

Allegro MicroSystems

EVAL BOARD FOR CT310

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Output Signal	Actuator Type	For Measuring	Mounting Type	Output	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Termination Style	Package / Case [custom]	Package / Case [custom]	Interface	Utilized IC / Part	Sensor Type	Supplied Contents
Allegro MicroSystems CT310LS-HD8	8-DFN (2x2)	Cosine Sine	External Magnet Not Included	Angle Rotary	Surface Mount	Analog Voltage	125 °C	-40 °C	Magnetoresistive	1 V	5.5 V	8-XFDFN Exposed Pad	Gull Wing
Allegro MicroSystems CT310LS-IT8	8-TSSOP	Cosine Sine	External Magnet Not Included	Angle Rotary	Surface Mount	Analog Voltage	85 °C	-40 °C	Magnetoresistive	1 V	5.5 V	8-TSSOP	Gull Wing	0.173 "	4.4 mm
Allegro MicroSystems EVB310										1 V	5.5 V					Analog	CT310	Magnetic Rotary Position	Board(s)
Allegro MicroSystems CT310LS-FD8	8-DFN (2x2)	Cosine Sine	External Magnet Not Included	Angle Rotary	Surface Mount	Analog Voltage			Magnetoresistive	1 V	5.5 V	8-XFDFN Exposed Pad	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.22

General part information

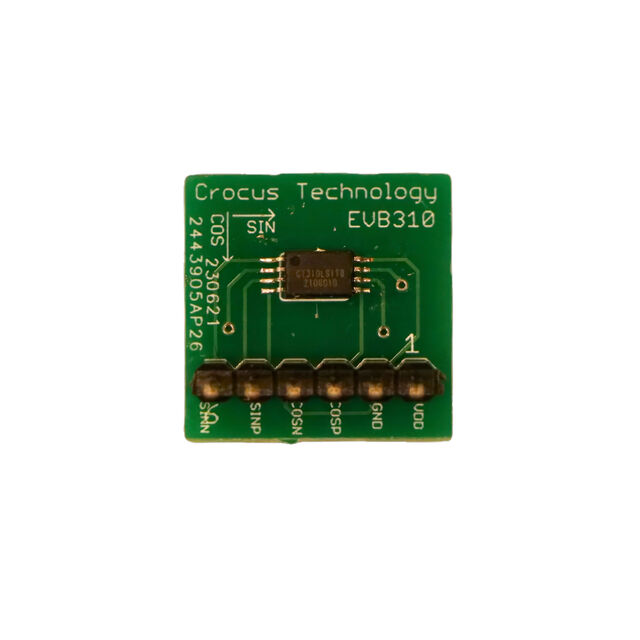

CT310 XtremeSense™ Crocus Technology Magnetic, Rotary Position Sensor Evaluation Board
