TR9CE1250T00CFR6B

Active

GlobTek, Inc.

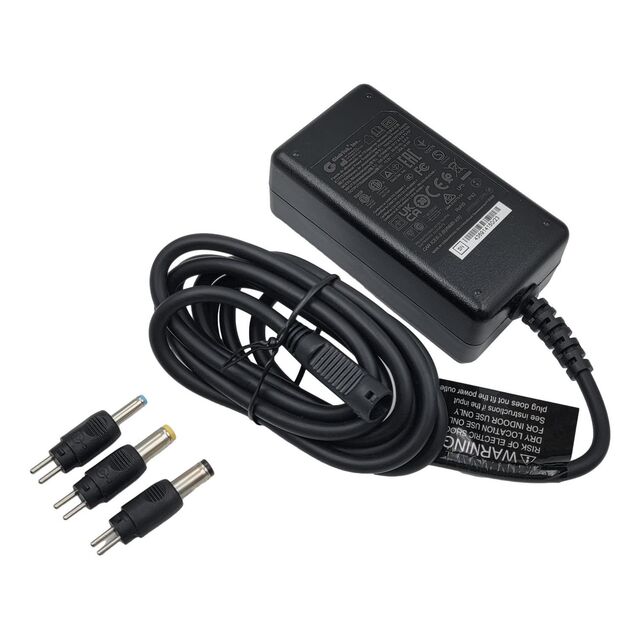

AC/DC DESKTOP ADAPTER 12V 15W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE1250T00CFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.25 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	87 mm
Size / Dimension [x]	3.43 in
Size / Dimension [y]	1.83 in
Size / Dimension [y]	46.5 mm
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Input Type	No Load Power Consumption [Max]	Input Connector	Cord Length	Cord Length	Region Utilized	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Form	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. TR9CE1250T00CFR6B	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	90 VAC	264 VAC	60335-1 60601-1 60950-1 62368-1	Cord	75 mW	IEC 320-C14	1.5 m	59 in	International	12 V	1.83 in	1.26 in	32 mm	87 mm	46.5 mm	3.43 in	Household Appliances ITE (Commercial) Medical	-20 C	40 °C	Desktop (Class I)	15 W	1.25 A	CoC Tier 1 Level VI	Barrel Plug	2.5 mm 5.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 15 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
