RF2-153-T-02-50-G
ActiveAdam Tech

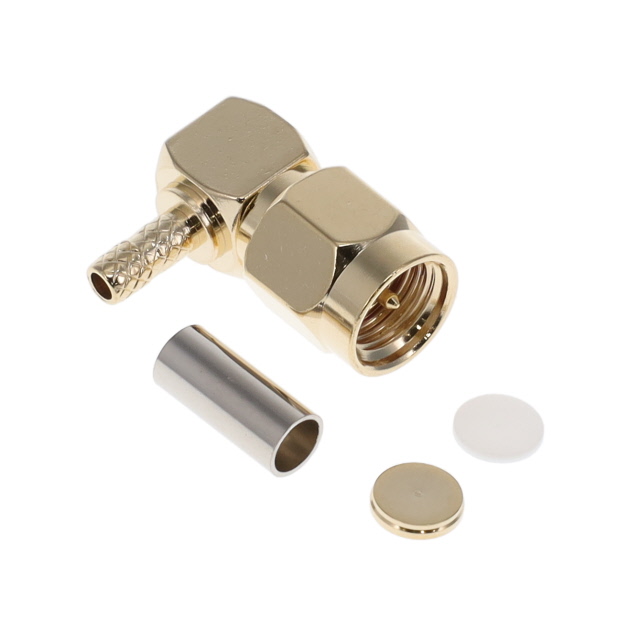

CRIMP SMA ELBOW PLUG FOR RG174 C
Deep-Dive with AI
Search across all available documentation for this part.
RF2-153-T-02-50-G
ActiveAdam Tech
CRIMP SMA ELBOW PLUG FOR RG174 C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF2-153-T-02-50-G |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-174, 316 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | White |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.91 | |
| 10 | $ 2.99 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.31 | |||
| 250 | $ 2.09 | |||
| 500 | $ 1.95 | |||
| 1000 | $ 1.82 | |||
| 2500 | $ 1.66 | |||
Description
General part information
RF2-153 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
