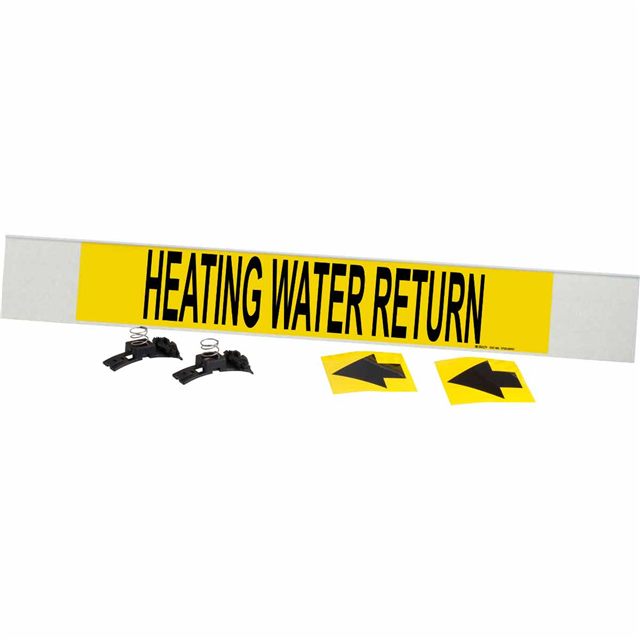

5702-HPHV HEATING WATER RET/YEL/

Search across all available documentation for this part.

Active

BRADY

5702-HPHV HEATING WATER RET/YEL/

Technical Specifications

Parameters and characteristics for this part

Specification	5702-HPHV

Application Specifics	Directionality
Applications	Pipe
Arrangement	Symbol and Text
Color - Background	Yellow
Color - Legend	Black
Features	Chemical Resistant, Abrasion Resistant
Language	English
Legend (Symbol Only)	Directional Arrow
Legend (Text)	Heating Water Return
Length [x]	24 in
Length [x]	609.6 mm
Location	Outdoor
Material - Body	Polyester (PET)
Mounting Type	Requires Holder
Outside Pipe Diameter (Max) [Max] [diameter]	203.2 mm
Outside Pipe Diameter (Max) [Max] [diameter]	8 "
Print Type	Pre-Printed
Shape	Rectangle
Width [x]	4 "
Width [x]	101.6 mm

Part	Legend (Symbol Only)	Language	Length [x]	Length [x]	Shape	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Color - Background	Material - Body	Arrangement	Print Type	Legend (Text)	Mounting Type	Color - Legend	Location	Application Specifics	Features	Applications	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Length	Length	Width
BRADY 5702-HPHV	Directional Arrow	English	24 in	609.6 mm	Rectangle	4 "	101.6 mm	203.2 mm	8 "	Yellow	Polyester (PET)	Symbol and Text	Pre-Printed	Heating Water Return	Requires Holder	Black	Outdoor	Directionality	Abrasion Resistant Chemical Resistant	Pipe
BRADY 5702-I	Directional Arrow	English			Rectangle	8 in	203.2 mm			Yellow	Plastic	Symbol and Text	Pre-Printed	Heating Water Return	Snap On	Black	Outdoor	Directionality	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pipe	1.5 "	38.1 mm	2.375 in	60.33 mm	9 "	228.6 mm
BRADY 5702-II	Directional Arrow	English			Rectangle	12 in				Yellow	Plastic	Symbol and Text	Pre-Printed	Heating Water Return	Snap On	Black	Outdoor	Directionality	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pipe	2.5 "	63.5 mm	7.875 in	200.03 mm	26 in	660.4 mm	304.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.28

General part information

5702-HPHV HEATING WATER RET/YEL/
