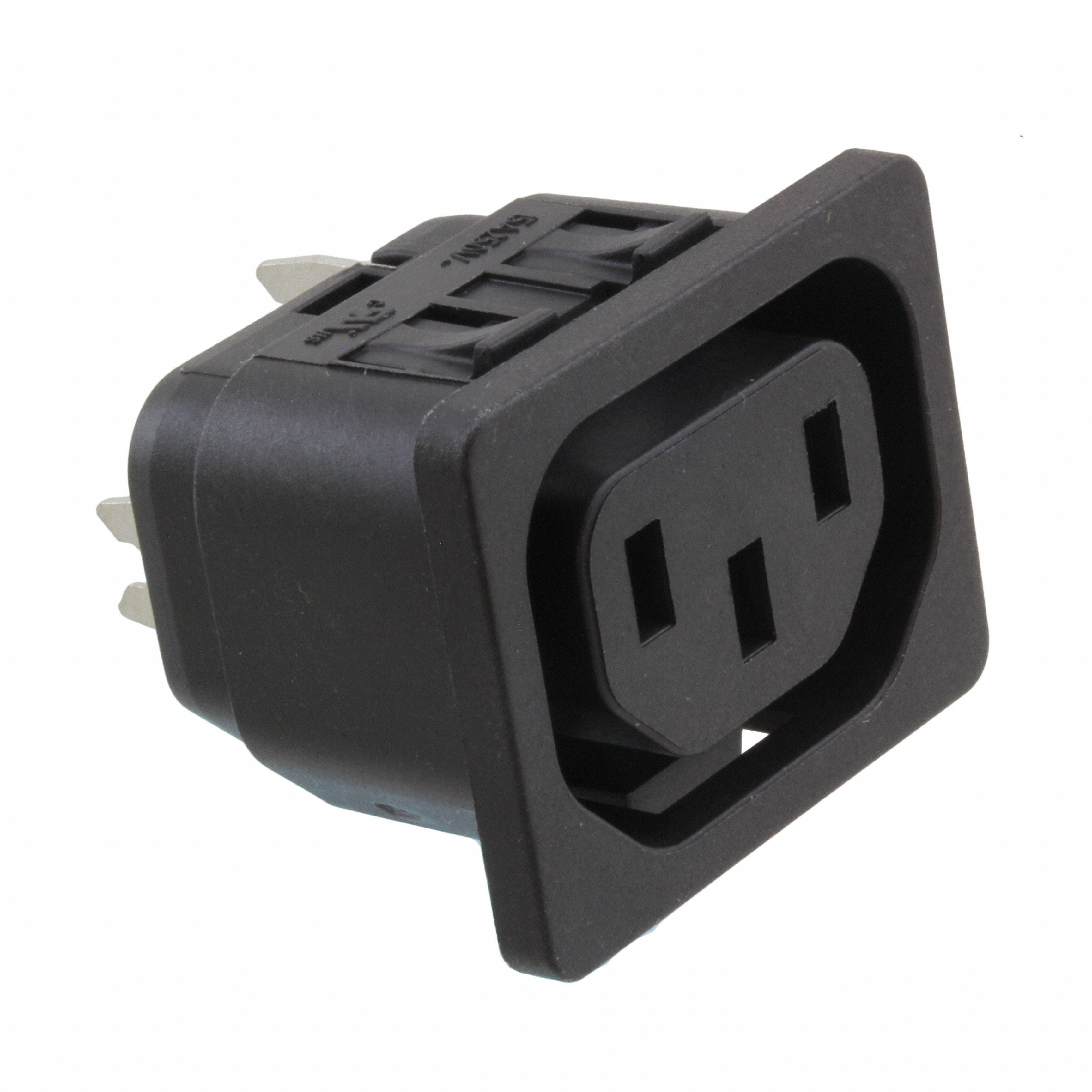

6610.2016.03

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-2-2F PNL IDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-2-2F PNL IDC

Technical Specifications

Parameters and characteristics for this part

Specification	6610.2016.03

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.3 mm
Panel Cutout Dimensions [y]	24.8 mm
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Termination	IDC
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Ingress Protection	Panel Thickness [x]	Panel Thickness [x]	Filter Type	Termination	Connector Style	Voltage Rating - Appliance Inlet	Connector Type	Approval Agency	Material Flammability Rating
SCHURTER Inc. 6610.2016.03	10 A		32.3 mm	24.8 mm	Panel Mount Snap-In	IP40	2.5 mm	0.098 in	Unfiltered - Commercial	IDC	IEC 320-2-2/F	250 VAC	Receptacle Female Sockets	CCC cULus ENEC	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
