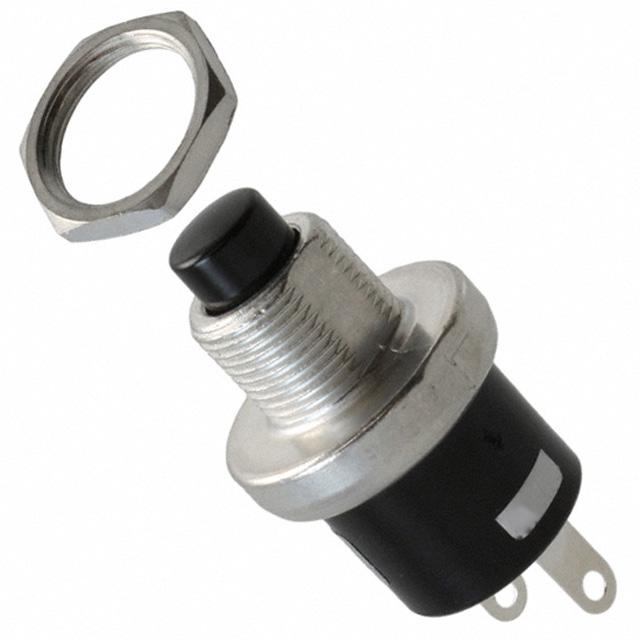

4002UL
ActiveGrayhill Inc.
SWITCH PUSH SPST-NC 3A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4002UL
ActiveGrayhill Inc.
SWITCH PUSH SPST-NC 3A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4002UL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 6000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 9.63 | |
Description
General part information
4002 Series
Pushbutton Switch SPST-NC Standard Panel Mount, Rear
