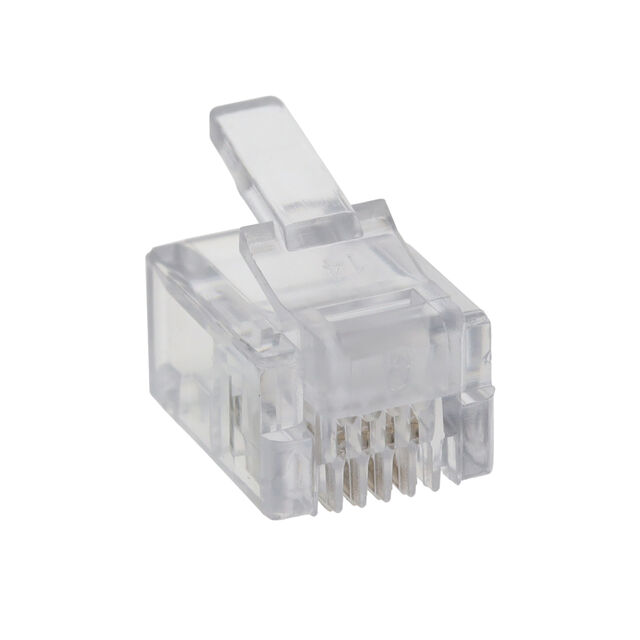

MTP-64-G - MTP-64-G

MTP-64-G

Active
Adam Tech

TELEPHONE PLUG 6P4C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet
MTP-64-G - MTP-64-G

MTP-64-G

Active
Adam Tech

TELEPHONE PLUG 6P4C

Deep-Dive with AI

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMTP-64-G
Cable TypeFlat Oval Cable, Not Specified
ColorClear
Connector TypePlug
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact MaterialCopper Alloy
Current Rating (Amps)1.5 A
Housing MaterialPolycarbonate (PC)
Length13.34 mm
Length0.525 in
Number of Positions/Contacts6p4c
ShieldingUnshielded
TerminationIDC
Voltage Rating150 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 0.34
10$ 0.26
25$ 0.23
50$ 0.21
100$ 0.20
250$ 0.18
500$ 0.16
1000$ 0.15
2500$ 0.14

Description

General part information

MTP-64 Series

Plug Modular Connector 6p4c (RJ11, RJ14) Position Unshielded IDC
