GD5F1GM7UEYIGR
ActiveGigaDevice Semiconductor (HK) Limited
IC FLASH 1GBIT SPI/QUAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GD5F1GM7UEYIGR
ActiveGigaDevice Semiconductor (HK) Limited
IC FLASH 1GBIT SPI/QUAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GD5F1GM7UEYIGR |
|---|---|
| Access Time | 7 ns |
| Clock Frequency | 133 MHz |
| Memory Format | FLASH |
| Memory Interface | DTR, Quad I/O, SPI |
| Memory Organization | 128 M |
| Memory Size | 1 Mbit |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

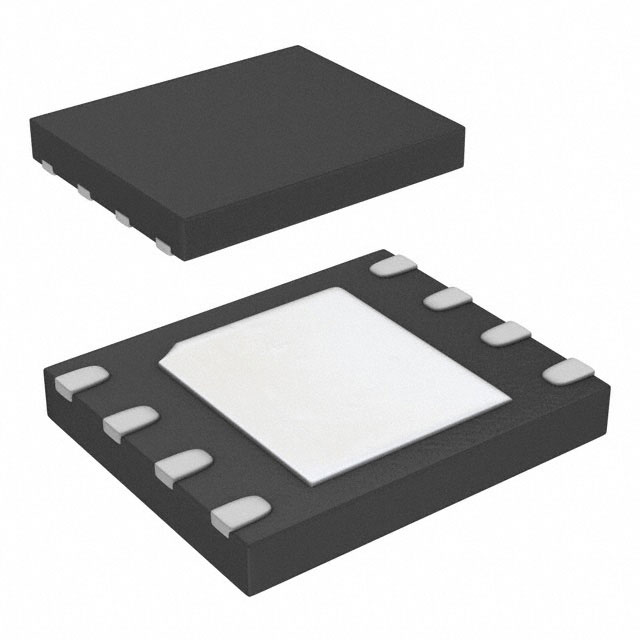

| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (6x8) |
| Technology | FLASH - NAND (SLC) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
| Write Cycle Time - Word, Page | 600 µs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.47 | |||
| 100 | $ 2.41 | |||
| 250 | $ 2.33 | |||
| 500 | $ 2.28 | |||
| 1000 | $ 2.22 | |||
| Digi-Reel® | 1 | $ 2.79 | ||
| 10 | $ 2.60 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.47 | |||
| 100 | $ 2.41 | |||
| 250 | $ 2.33 | |||
| 500 | $ 2.28 | |||
| 1000 | $ 2.22 | |||
| Tape & Reel (TR) | 3000 | $ 1.81 | ||
Description
General part information
GD5F1GM7 Series
FLASH - NAND (SLC) Memory IC 1Gbit SPI - Quad I/O, DTR 133 MHz 7 ns 8-WSON (6x8)
