1424499

Active

Phoenix Contact

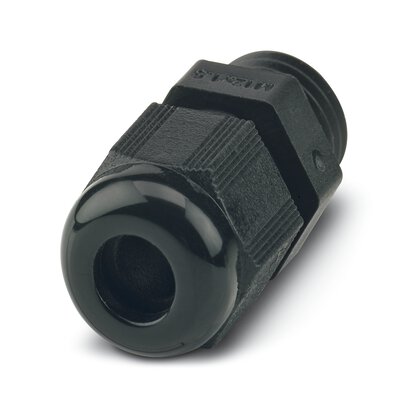

CABLE GLAND 10-14MM PG16

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-14MM PG16

Technical Specifications

Parameters and characteristics for this part

Specification	1424499

Color	Black
Includes	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG16
Type	Cable Gland

Part	Thread Length	Thread Length	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Material	Type	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Phoenix Contact 1411174	0.256 in	6.5 mm	Silver	IP66 IP68 IP69	100 °C	-40 °C	O-Ring Seal	Brass Nickel Plated	Cable Gland	PG16	0.394 in	10 mm	14 mm	0.551 "
Phoenix Contact 1424489	0.394 in	10 mm	Gray	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Seal	Polyamide (PA) Nylon	Cable Gland	PG16	0.394 in	10 mm	14 mm	0.551 "
Phoenix Contact 1424499	0.394 in	10 mm	Black	IP68 - Dust Tight Waterproof	100 °C	-40 °C	Seal	Polyamide (PA) Nylon	Cable Gland	PG16	0.394 in	10 mm	14 mm	0.551 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG16 Black
