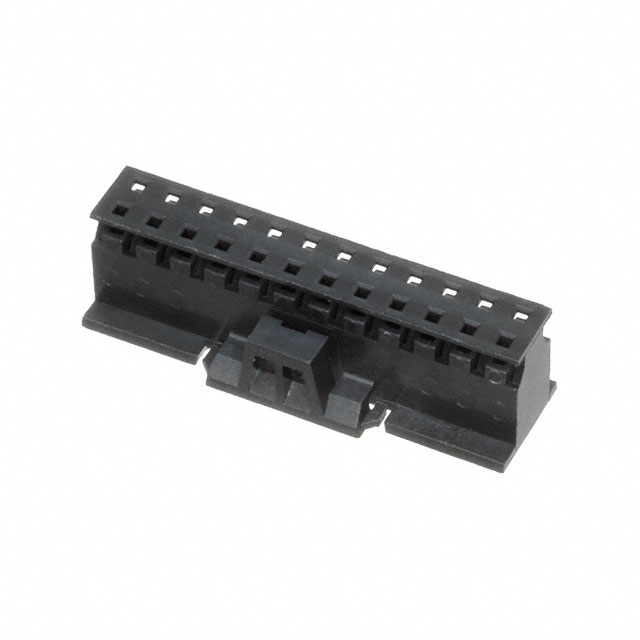

10073599-024LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 24POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet dps-12-011 Other Related Document +1

10073599-024LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 24POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet dps-12-011 Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10073599-024LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	24
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

10073599 Series

Part	Number of Rows	Connector Type	Contact Termination	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Color	Insulation Material	Row Spacing	Row Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Fastening Type
Amphenol ICC (FCI) 10073599-018LF	2	Receptacle	Crimp	18	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-032LF	2	Receptacle	Crimp		0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-038LF	2	Receptacle	Crimp	38	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-042LF	2	Receptacle	Crimp	42	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-048LF	2	Receptacle	Crimp	48	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-106LF	2	Receptacle	Crimp	6	0.079 in	2 mm	Female Socket	Cream	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-028LF	2	Receptacle	Crimp	28	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-036LF	2	Receptacle	Crimp	36	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-024LF	2	Receptacle	Crimp	24	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock
Amphenol ICC (FCI) 10073599-014LF	2	Receptacle	Crimp	14	0.079 in	2 mm	Female Socket	Black	Polyamide (PA66) Nylon 6/6	2 mm	0.079 in	Free Hanging (In-Line)	-55 °C	125 °C	Contacts Not Included	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	3000	$ 1.30
