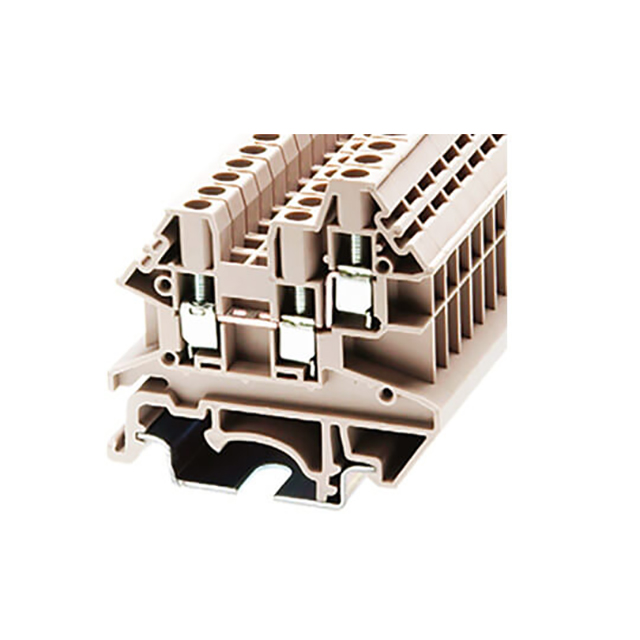

DK2.5N-TN

Active

Dinkle Corporation, USA

SCREW TERM BLK FEED THROUGH 22~1

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

SCREW TERM BLK FEED THROUGH 22~1

Technical Specifications

Parameters and characteristics for this part

Specification	DK2.5N-TN

Color	Gray
Current - IEC	24 A
Current - UL	20 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Stripping Length [Max]	11 mm
Stripping Length [Min]	9 mm
Terminal - Width [y]	5.1 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	1 kV
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

Part	Voltage - IEC	Material Flammability Rating	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - UL	Color	Termination Style	Number of Positions	Terminal - Width [y]	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Type	Current - IEC
Dinkle Corporation, USA DK2.5N-TR	1 kV	UL94 V-0	1	12 AWG	22 AWG	600 V	0.14 mm²	2.5 mm²	20 A	Gray	Screw	4	5.1 mm	Nylon Polyamide (PA)	9 mm	11 mm	Feed Through	24 A
Dinkle Corporation, USA DK2.5N-TN	1 kV	UL94 V-0	1	12 AWG	22 AWG	600 V	0.14 mm²	2.5 mm²	20 A	Gray	Screw		5.1 mm	Nylon Polyamide (PA)	9 mm	11 mm	Feed Through	24 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Feed Through Gray 12-22 AWG
