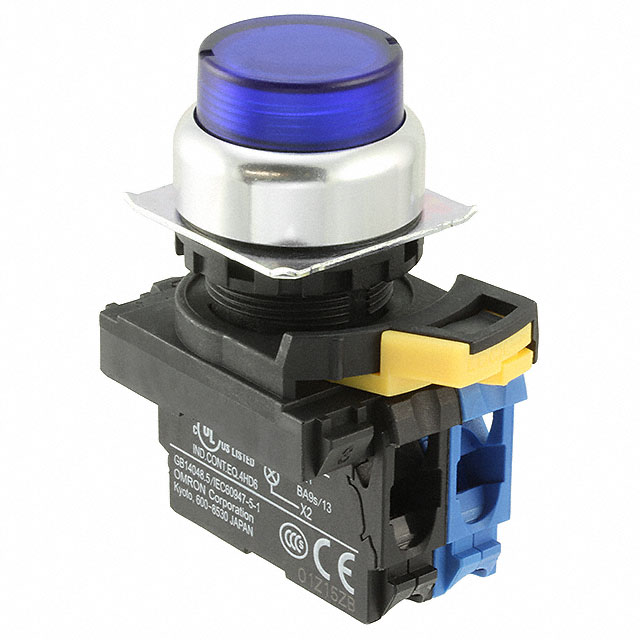

A22NL-RPA-TAA-G102-AE

Obsolete

Omron Electronics Inc-EMC Div

SWITCH PUSH DPST-NO/NC 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A22NL-RPA-TAA-G102-AE

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Clear
Current Rating (Amps)	10 A
Electrical Life	500000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal) [Max]	240 VAC
Illumination Voltage (Nominal) [Min]	200 VAC
Ingress Protection	IP66
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

A22NL Series

...

Part	Illumination Voltage (Nominal)	Mounting Type	Voltage Rating - DC	Mechanical Life	Ingress Protection	Voltage Rating - AC	Switch Function	Circuit	Illumination Type, Color	Electrical Life	Type	Actuator Type	Current Rating (Amps)	Actuator Marking	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]
Omron Electronics Inc-EMC Div A22NL-BPM-TYA-G102-YC	24 VAC/DC	Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	Off-Mom On-Mom	DPST-NO/NC	LED Yellow	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Screw Terminal	55 °C	-25 °C	22.3 mm	Clear (Yellow Filter/Diffuser)
Omron Electronics Inc-EMC Div A22NL-BPM-TAA-P202-AC	24 VAC/DC	Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	On-Mom	DPST-NC	Blue LED	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Spring Terminal	55 °C	-25 °C	22.3 mm	Clear
Omron Electronics Inc-EMC Div A22NL-BNA-TGA-G102-GC	24 VAC/DC	Panel Mount Front	24 V	500000 Cycles	IP66	120 V	Off-On On-Off	DPST-NO/NC	Green LED	500000 Cycles	Illuminated Standard	Button Flush Round	10 A	No Marking	Screw Terminal	55 °C	-25 °C	22.3 mm	Clear
Omron Electronics Inc-EMC Div A22NL-BPM-TGA-G102-GD		Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	Off-Mom On-Mom	DPST-NO/NC	Green LED	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Screw Terminal	55 °C	-25 °C	22.3 mm	Clear	120 VAC/DC	100 VAC/DC
Omron Electronics Inc-EMC Div A22NL-RPM-TGA-P202-GE		Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	On-Mom	DPST-NC	Green LED	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Spring Terminal	55 °C	-25 °C	22.3 mm	Clear	240 VAC	200 VAC
Omron Electronics Inc-EMC Div A22NL-BPM-TYA-G202-YD		Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	On-Mom	DPST-NC	LED Yellow	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Screw Terminal	55 °C	-25 °C	22.3 mm	Clear (Yellow Filter/Diffuser)	120 VAC/DC	100 VAC/DC
Omron Electronics Inc-EMC Div A22NL-RPM-TYA-G100-YB	12 VAC/DC	Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	Off-Mom	SPST-NO	LED Yellow	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Screw Terminal	55 °C	-25 °C	22.3 mm	Clear (Yellow Filter/Diffuser)
Omron Electronics Inc-EMC Div A22NL-RPA-TAA-G102-AE		Panel Mount Front	24 V	500000 Cycles	IP66	120 V	Off-On On-Off	DPST-NO/NC	Blue LED	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Screw Terminal	55 °C	-25 °C	22.3 mm	Clear	240 VAC	200 VAC
Omron Electronics Inc-EMC Div A22NL-MPM-TWA-P202-WE		Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	On-Mom	DPST-NC	LED White	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Spring Terminal	55 °C	-25 °C	22.3 mm	Clear	240 VAC	200 VAC
Omron Electronics Inc-EMC Div A22NL-MPM-TRA-P202-RE		Panel Mount Front	24 V	5000000 Cycles	IP66	120 V	On-Mom	DPST-NC	LED Red	500000 Cycles	Illuminated Standard	Button Round	10 A	No Marking	Spring Terminal	55 °C	-25 °C	22.3 mm	Clear (Red Filter/Diffuser)	240 VAC	200 VAC
