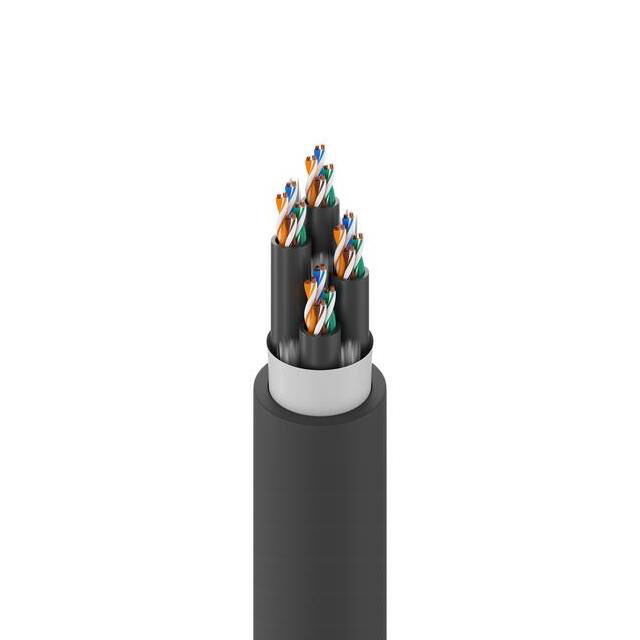

1304A4 B591000

Active

Belden Inc.

4 CHANNEL 4PR #24 PO FRPVC PVC

Search across all available documentation for this part.

Active

Belden Inc.

4 CHANNEL 4PR #24 PO FRPVC PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1304A4 B591000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	19.1 mm
Jacket (Insulation) Diameter [diameter]	0.752 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.075 in
Jacket (Insulation) Thickness	1.905 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	32
Number of Conductors [custom]	16
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Usage	Ethernet, Audio
Voltage	300 V
Wire Gauge	24 AWG

Part	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Length	Length	Jacket Color	Usage	Number of Conductors	Number of Conductors [custom]	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type
Belden Inc. 1304A4 B591000	300 V	32 AWG	7	24 AWG	-30 ░C	75 ░C	Polypropylene (PP)	1000 ft	304.8 m	Black	Audio Ethernet	32	16	Poly-Vinyl Chloride (PVC)	Copper Bare	0.075 in	1.905 mm	19.1 mm	0.752 in	Multi-Pair Cat5e

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.66

General part information

32 (16 Pair) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 1000.0' (304.8m)
