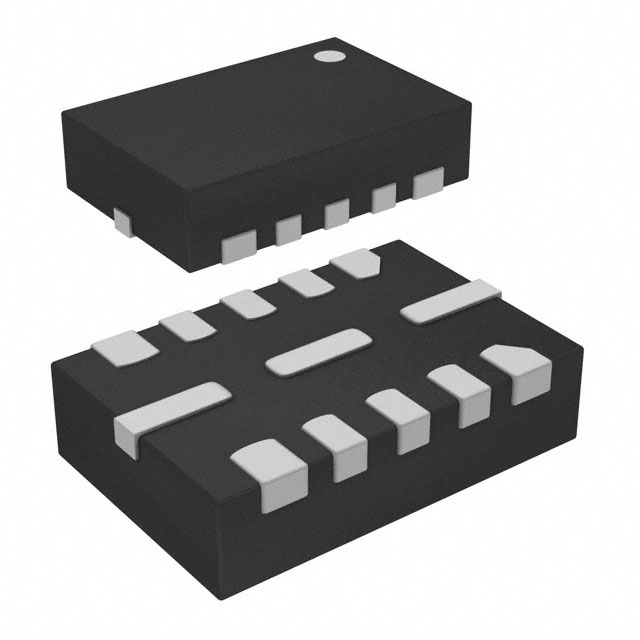

MP5018GD-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC PWR SWITCH 1:1 12QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC PWR SWITCH 1:1 12QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP5018GD-Z

Current - Output (Max) [Max]	5 A
Fault Protection	Current Limiting (Adjustable), Reverse Current, UVLO, Over Voltage, Over Temperature
Features	Slew Rate Controlled, Status Flag
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Package / Case	12-VFQFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	45 mOhm
Supplier Device Package	12-QFN (2x3)
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	4.5 V

Part	Switch Type	Features	Fault Protection	Supplier Device Package	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Package / Case	Mounting Type	Number of Outputs	Rds On (Typ)	Interface	Voltage - Load [Min]	Voltage - Load [Max]
MONOLITHIC POWER SYSTEMS (MPS) MP5018GD-Z	General Purpose	Slew Rate Controlled Status Flag	Current Limiting (Adjustable) Over Temperature Over Voltage Reverse Current UVLO	12-QFN (2x3)	5 A	1:1	12-VFQFN Exposed Pad	Surface Mount	1	45 mOhm	On/Off	4.5 V	5.5 V
MONOLITHIC POWER SYSTEMS (MPS) MP5018GD-P	General Purpose	Slew Rate Controlled Status Flag	Current Limiting (Adjustable) Over Temperature Over Voltage Reverse Current UVLO	12-QFN (2x3)	5 A	1:1	12-VFQFN Exposed Pad	Surface Mount	1	45 mOhm	On/Off	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.57

General part information

Power Switch/Driver 1:1 5A 12-QFN (2x3)
