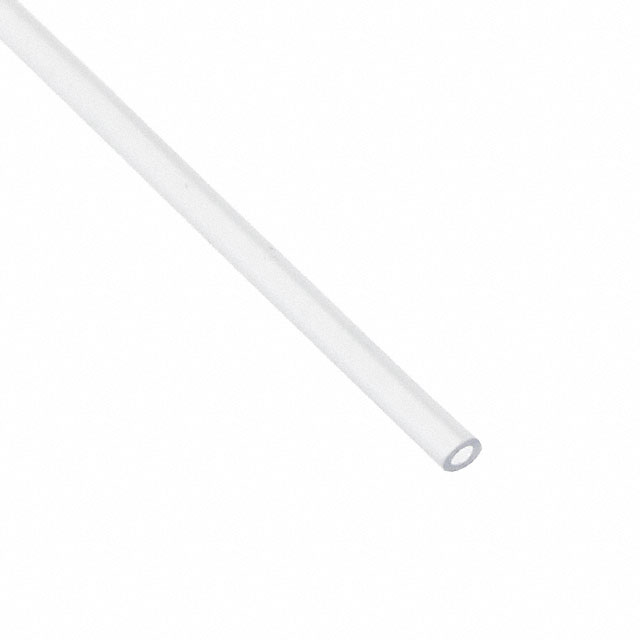

P10518 CL001

Active

ALPHA WIRE

CABLE ACCESSORIES NON SHRINKABLE TUBING POLYVINYL CHLORIDE CLEAR

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE ACCESSORIES NON SHRINKABLE TUBING POLYVINYL CHLORIDE CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	P10518 CL001

Abrasion Protection	Abrasion Resistant
Color	Clear
Diameter - Inside [diameter]	1.02 mm
Diameter - Inside [diameter]	0.04 "
Diameter - Outside [diameter]	0.081 in
Diameter - Outside [diameter]	2.06 mm
Environment Protection	UV Resistant, Corrosion Resistant
Heat Protection	Heat Resistant
Length	1000 ft
Length	304.8 m
Liquid Protection	Oil Resistant
Material	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL 224 VW-1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

Part	Heat Protection	Length	Length	Type	Material	Liquid Protection	Abrasion Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Color	Wall Thickness	Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Environment Protection
ALPHA WIRE P10518 BK001	Heat Resistant	1000 ft	304.8 m	Solid Tubing	Poly-Vinyl Chloride (PVC)	Oil Resistant	Abrasion Resistant	1.02 mm	0.04 "	Smooth	Black	0.016 in	0.4 mm	-20 C	105 ░C	UL 224 VW-1	0.081 in	2.06 mm	Corrosion Resistant UV Resistant
ALPHA WIRE P10518 BK005	Heat Resistant	100 ft	30.48 m	Solid Tubing	Poly-Vinyl Chloride (PVC)	Oil Resistant	Abrasion Resistant	1.02 mm	0.04 "	Smooth	Black	0.016 in	0.4 mm	-20 C	105 ░C	UL 224 VW-1	0.081 in	2.06 mm	Corrosion Resistant UV Resistant
ALPHA WIRE P10518 CL005	Heat Resistant	100 ft	30.48 m	Solid Tubing	Poly-Vinyl Chloride (PVC)	Oil Resistant	Abrasion Resistant	1.02 mm	0.04 "	Smooth	Clear	0.016 in	0.4 mm	-20 C	105 ░C	UL 224 VW-1	0.081 in	2.06 mm	Corrosion Resistant UV Resistant
ALPHA WIRE P10518 CL001	Heat Resistant	1000 ft	304.8 m	Solid Tubing	Poly-Vinyl Chloride (PVC)	Oil Resistant	Abrasion Resistant	1.02 mm	0.04 "	Smooth	Clear	0.016 in	0.4 mm	-20 C	105 ░C	UL 224 VW-1	0.081 in	2.06 mm	Corrosion Resistant UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clear Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.040" (1.02mm) 1000' (304.80m)
