APD2520SF4C03-P22

Active

Kingbright

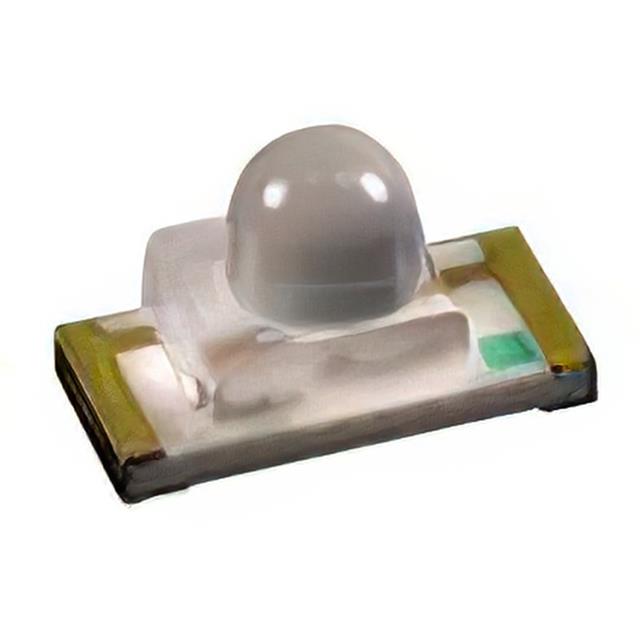

4.5X2.0MM INFRARED SMD LED

Search across all available documentation for this part.

Active

Kingbright

4.5X2.0MM INFRARED SMD LED

Technical Specifications

Parameters and characteristics for this part

Specification	APD2520SF4C03-P22

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	1808
Package / Case	4520 Metric
Radiant Intensity (Ie) Min @ If [Min]	2 mW/sr
Type	Infrared (IR)
Viewing Angle	10 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	880 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Forward (Vf) (Typ)	Wavelength	Current - DC Forward (If) (Max) [Max]	Orientation	Package / Case	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Viewing Angle
Kingbright APD2520SF4C03-P22	85 °C	-40 °C	Infrared (IR)	1.3 V	880 nm	50 mA	Top View	1808	4520 Metric	2 mW/sr	Surface Mount	10 °
Kingbright APD2520F3C03-P22	85 °C	-40 °C	Infrared (IR)		940 nm	50 mA	Top View	1808	4520 Metric	3 mW/sr	Surface Mount	10 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 880nm 1.3V 50mA 2mW/sr @ 20mA 10° 1808 (4520 Metric)
