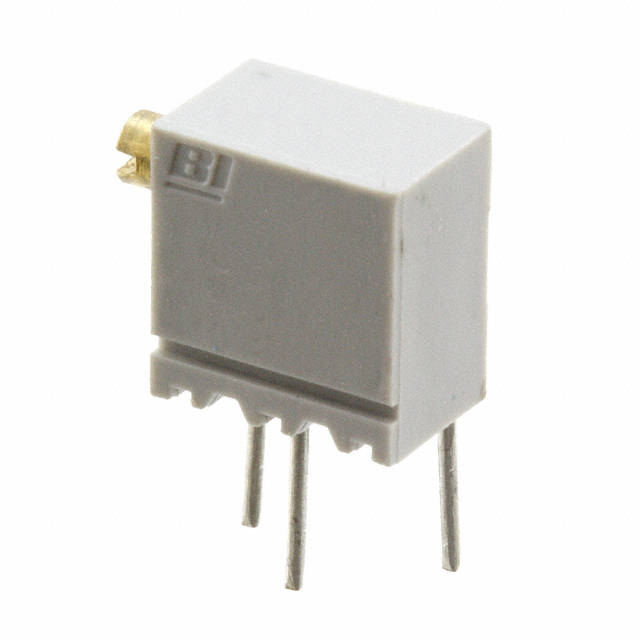

64XR1KLF

Active

TT Electronics/BI

TRIMMER 1K OHM 0.25W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

64XR1KLF

Active

TT Electronics/BI

TRIMMER 1K OHM 0.25W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	64XR1KLF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	1000 Ohms
Resistive Material	Cermet
Size / Dimension [x]	0.25 in
Size / Dimension [x]	6.35 mm
Size / Dimension [y]	0.165 in
Size / Dimension [y]	4.19 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

64XR Series

Part	Resistive Material	Number of Turns	Tolerance	Mounting Type	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Power (Watts)	Power (Watts)	Termination Style	Adjustment Type
TT Electronics/BI 64XR100KLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	100 kOhms	0.25 W	250 mW	PC Pins	Side Adjustment
TT Electronics/BI 64XR50LF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	50 Ohms	0.25 W	250 mW	PC Pins	Top Adjustment
TT Electronics/BI 64XR500KLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm		0.25 W	250 mW	PC Pins	Top Adjustment
TT Electronics/BI 64XR2KLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	2 kOhms	0.25 W	250 mW	PC Pins	Side Adjustment
TT Electronics/BI 64XR20LF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	20 Ohms	0.25 W	250 mW	PC Pins	Top Adjustment
TT Electronics/BI 64XR25KLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	25 kOhms	0.25 W	250 mW	PC Pins	Top Adjustment
TT Electronics/BI 64XR1MEGLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	1 MOhms	0.25 W	250 mW	PC Pins	Top Adjustment
TT Electronics/BI 64XR200KLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	200000 Ohms	0.25 W	250 mW	PC Pins	Side Adjustment
TT Electronics/BI 64XR1KLF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	1000 Ohms	0.25 W	250 mW	PC Pins	Side Adjustment
TT Electronics/BI 64XR200LF	Cermet	12	10 %	Through Hole	100 ppm/°C	0.165 in	0.25 in	6.35 mm	4.19 mm	200 Ohms	0.25 W	250 mW	PC Pins	Top Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.80
		10	$ 2.46
		25	$ 2.21
		50	$ 2.12
		100	$ 2.04
		250	$ 1.95
		500	$ 1.61
		1000	$ 1.53
		5000	$ 1.27

Description

General part information

64XR Series

1 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
