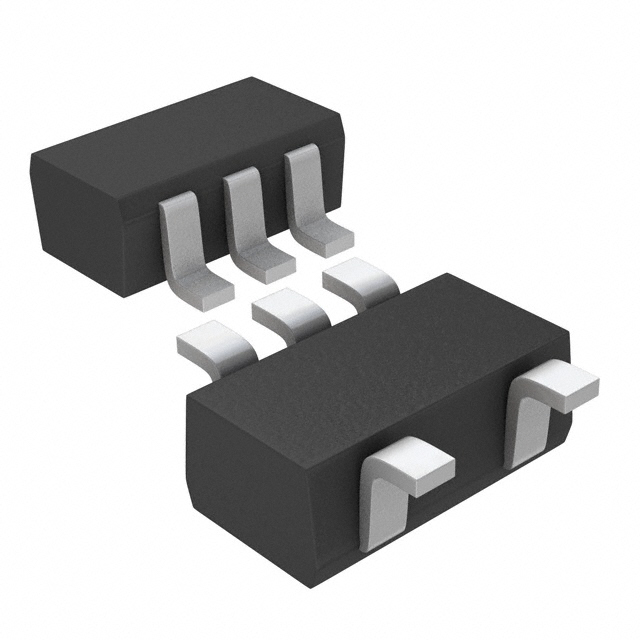

BA033LBSG2-TR

NRND

Rohm Semiconductor

STANDARD REGULATOR POS 3.3V 0.28A 5-PIN SMP T/R

Search across all available documentation for this part.

NRND

Rohm Semiconductor

STANDARD REGULATOR POS 3.3V 0.28A 5-PIN SMP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	BA033LBSG2-TR

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	15 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-74A, SOT-753
Protection Features	Over Current, Over Temperature
PSRR [Max]	66 dB
PSRR [Min]	58 dB
Supplier Device Package	SMP5
Voltage - Input (Max) [Max]	7 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.15 V

Part	PSRR	Current - Supply (Max) [Max]	Current - Output	Current - Quiescent (Iq)	Output Configuration	Protection Features	Number of Regulators	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Output Type	Control Features	Voltage Dropout (Max) [Max]	PSRR [Min]	PSRR [Max]
Rohm Semiconductor BA033T	55 dB	5 mA	1 A	2.5 mA	Positive	Over Current Over Temperature Over Voltage	1	85 °C	-40 °C	TO-220-3 Full Pack	TO-220FP	Through Hole	3.3 V	25 V	1.81 mOhm
Rohm Semiconductor BA033LBSG2-TR			150 mA	15 µA	Positive	Over Current Over Temperature	1	85 °C	-40 °C	SC-74A SOT-753	SMP5	Surface Mount	3.3 V	7 V	1.81 mOhm	Enable	0.15 V	58 dB	66 dB
Rohm Semiconductor BA033FP-E2	55 dB	5 mA	1 A	2.5 mA	Positive	Over Current Over Temperature Over Voltage	1	85 °C	-40 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	TO-252	Surface Mount	3.3 V	25 V	1.81 mOhm
Rohm Semiconductor BA033ST	55 dB	5 mA	1 A	2.5 mA	Positive	Over Current Over Temperature Over Voltage	1	85 °C	-40 °C	TO-220-5 Full Pack	TO-220FP-5	Through Hole	3.3 V	25 V	1.81 mOhm	Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Internal output transistor (Io = 150mA)

Internal temperature protection circuit

Power-saving function enables designs with low current consumption
