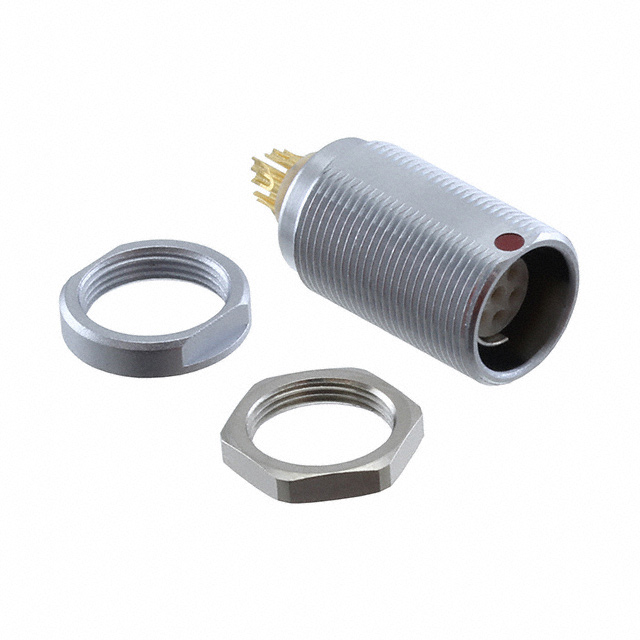

G50F1C-P07LCC0-0000

Active

ODU

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ODU MINI-SNAP Series F Catalog +1

G50F1C-P07LCC0-0000

Active

ODU

CONN RCPT FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet ODU MINI-SNAP Series F Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G50F1C-P07LCC0-0000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0

G50F1C-P Series

Part	Applications	Ingress Protection	Contact Material	Mounting Feature	Contact Finish - Mating	Shell Material	Current Rating (Amps)	Shell Finish	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insert Material	Connector Type	Color	Material Flammability Rating	Primary Material	Voltage Rating	Number of Positions	Shielding	Mounting Type	Termination
ODU G50F1C-P03LJG0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	7.5 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal
ODU G50F1C-P07MCC0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	4 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal	300 VDC	7	Unshielded
ODU G50F1C-P09LCC0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	4 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal		9
ODU G50F1C-P04LFD0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	6 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal	300 VDC	4	Unshielded
ODU G50F1C-P07LCC0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	4 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal		7
ODU G50F1C-P02LJG0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	7.5 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal	500 V	2	Unshielded
ODU G50F1C-P05LFD0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	6 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal	366 V		Unshielded
ODU G50F1C-P05QF00-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	6 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal	366 V		Unshielded	Panel Mount Through Hole	Solder
ODU G50F1C-P05LFG0-0000	Industrial Medical Military Testing Equipment & Measurement	IP50	Brass	Bulkhead - Front or Rear Side Nut	Gold	Brass	7.5 A	Chrome over Nickel	1	-40 °C	120 °C	Push-Pull	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.92
		10	$ 39.33
		25	$ 37.63
		50	$ 36.42
		100	$ 35.21
		250	$ 33.26

Description

General part information

G50F1C-P Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

ODU MINI-SNAP Series F Catalog

Datasheet

ODU MINI-SNAP F Assembly Instruction

Datasheet
