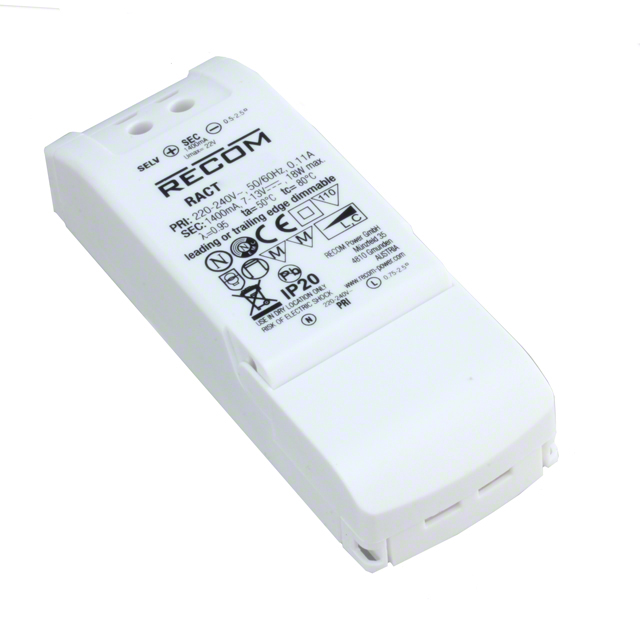

RACT25-1050

Active

RECOM Power

LED DRIVER, TRIAC DIMMABLE, 25 W, 24 V, 1.05 A, CONSTANT CURRENT, 198 V, 264 V

Search across all available documentation for this part.

Active

RECOM Power

LED DRIVER, TRIAC DIMMABLE, 25 W, 24 V, 1.05 A, CONSTANT CURRENT, 198 V, 264 V

Technical Specifications

Parameters and characteristics for this part

LED Power Supplies 25W 198-264Vin 12-24Vout 1.05A

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Termination Style	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output [Max]	Voltage - Output [Min]	Approval Agency	Power (Watts)	Topology	Type	Efficiency	Dimming	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Ratings	Mounting Type	Voltage - Input (Min) [Min]	Weight	Weight	Voltage - Isolation
RECOM Power RACT25-1050	1.05 A	264 VAC	Screw Terminal	1.1 in	45 mm	120 mm	4.72 in	28 mm	1.77 "	24 V	12 V	CE	25 W	AC DC Converter	Constant Current	84 %	TRIAC	OCP OTP OVP SCP	50 °C	-20 C	1	IP20	Chassis Mount	198 VAC	100.24 g	0.221 lb	3750 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Power Supplies 25W 198-264Vin 12-24Vout 1.05A
