T2081NXE8TTB

Active

Freescale Semiconductor - NXP

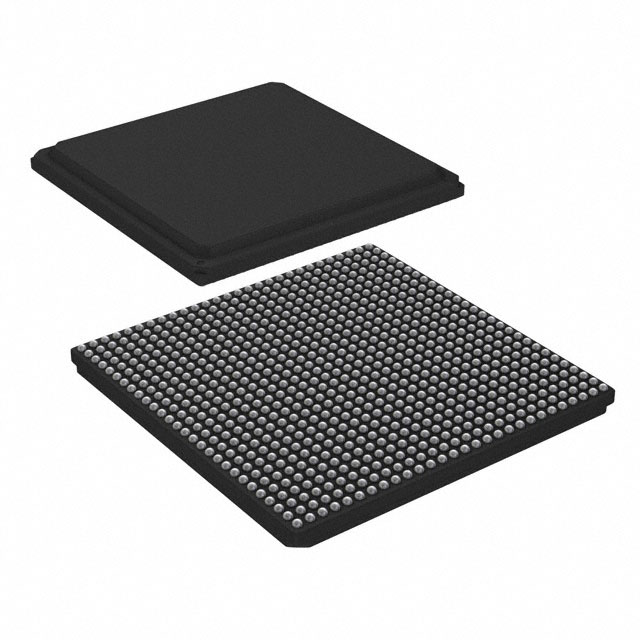

MPU QORIQ T2081 RISC 64BIT 28NM 1.8GHZ 780-PIN FCBGA TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T2081NXE8TTB

Active

Freescale Semiconductor - NXP

MPU QORIQ T2081 RISC 64BIT 28NM 1.8GHZ 780-PIN FCBGA TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T2081NXE8TTB

Core Processor	PowerPC e6500
Ethernet	1 Gbps, 10 Gbps, 2.5 Gbps
Mounting Type	Surface Mount
Number of Cores/Bus Width [custom]	64 Bit
Number of Cores/Bus Width [custom]	4
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	0 °C
RAM Controllers	DDR3L, DDR3
SATA	SATA 3Gbps (2)
Speed	1.8 GHz
Supplier Device Package	780-FBGA (23x23)
USB	USB 2.0 + PHY (2)

T2081 Series

Part	SATA	Mounting Type	Package / Case	RAM Controllers	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores/Bus Width	Core Processor	Supplier Device Package	USB	Ethernet	Speed	Additional Interfaces	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Security Features
Freescale Semiconductor - NXP T2081NXE8TTB	SATA 3Gbps (2)	Surface Mount	780-BFBGA	DDR3 DDR3L	105 °C	-40 °C	8 Core 64 Bit	PowerPC e6500	780-FBGA (23x23)	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz	I2C MMC/SD PCIe RapidIO SPI UART
Freescale Semiconductor - NXP T2081NSN8P1B	SATA 3Gbps (2)	Surface Mount	896-BFBGA FCBGA	DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	896-FCPBGA (25x25)	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.533 GHz		64 Bit	4
Freescale Semiconductor - NXP T2081NSN8TTB	SATA 3Gbps (2)	Surface Mount		DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	780-FBGA (23x23)	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz		64 Bit	4
Freescale Semiconductor - NXP T2081NSN8MQLB	SATA 3Gbps (2)	Surface Mount	896-BFBGA FCBGA	DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	896-FCPBGA (25x25)	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.2 GHz		64 Bit	4
Freescale Semiconductor - NXP T2081NSN7TTB	SATA 3Gbps (2)	Surface Mount	780-FBGA FCBGA	DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	780-FCPBGA	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz	I2C MMC/SD PCIe RapidIO SPI UART	64 Bit	4
Freescale Semiconductor - NXP T2081NXE8TTB	SATA 3Gbps (2)	Surface Mount		DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	780-FBGA (23x23)	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz		64 Bit	4
Freescale Semiconductor - NXP T2081NSE7PTB	SATA 3Gbps (2)	Surface Mount	780-FBGA FCBGA	DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	780-FCPBGA	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz	I2C MMC/SD PCIe RapidIO SPI UART	64 Bit	4	Boot Security Cryptography Secure Debug Secure Fusebox Volatile key Storage
Freescale Semiconductor - NXP T2081NXE7MQB	SATA 3Gbps (2)	Surface Mount	780-FBGA FCBGA	DDR3 DDR3L	105 °C	-40 °C		PowerPC e6500	780-FCPBGA	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz	I2C MMC/SD PCIe RapidIO SPI UART	64 Bit	4	Boot Security Cryptography Secure Debug Secure Fusebox Volatile key Storage
Freescale Semiconductor - NXP T2081NSN7MQB	SATA 3Gbps (2)	Surface Mount	780-FBGA FCBGA	DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	780-FCPBGA	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.8 GHz	I2C MMC/SD PCIe RapidIO SPI UART	64 Bit	4
Freescale Semiconductor - NXP T2081NXE8PTB	SATA 3Gbps (2)	Surface Mount	896-BFBGA FCBGA	DDR3 DDR3L	105 °C	0 °C		PowerPC e6500	896-FCPBGA (25x25)	USB 2.0 + PHY (2)	1 Gbps 2.5 Gbps 10 Gbps	1.533 GHz		64 Bit	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 139.33
Digikey	Bulk	1	$ 448.51
		1	$ 448.51
	Tray	1	$ 298.56
		1	$ 298.56
Newark	Each	25	$ 312.90

Description

General part information

T2081 Series

PowerPC e6500 Microprocessor IC QorIQ T2 8 Core, 64-Bit 1.8GHz 780-FBGA (23x23)
