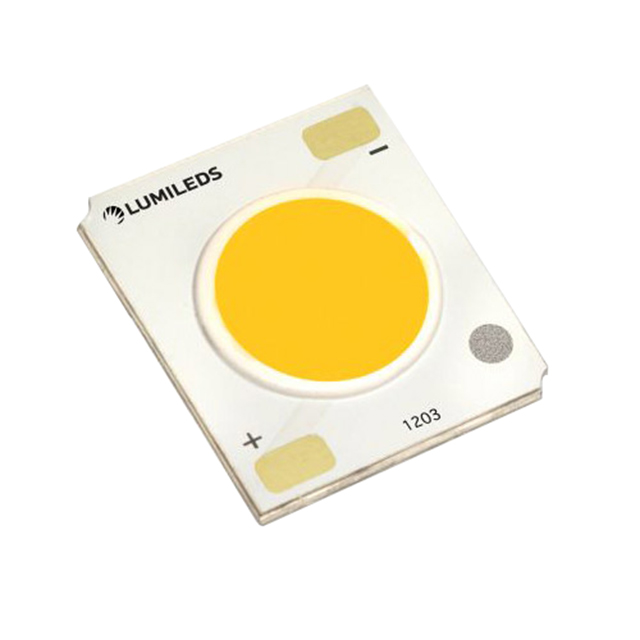

LHC1-2780-1203

Obsolete

Lumileds

LED COB LUXEON WARM WHT SQ 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LHC1-2780-1203

Obsolete

Lumileds

LED COB LUXEON WARM WHT SQ 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LHC1-2780-1203

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	600 mA
Current - Test	300 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9 mm
Lumens/Watt @ Current - Test	106 lm/W
Luminous Flux @ Current/Temperature	1125 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	16 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	35.5 V

LHC1 Series

Part	Height [z]	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Current - Test	Viewing Angle	Configuration	Type	Color	Luminous Flux @ Current/Temperature	Lens Type	Lumens/Watt @ Current - Test	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)	CCT (K)
Lumileds LHC1-2290-1208	1.5 mm	35.5 V	15 mm	900 mA	115 °	Square	Chip On Board (COB)	Warm White	2125 lm	Flat	67 lm/W	85 °C	20 mm	24 mm	2200 K	1.8 A	90
Lumileds LHC1-3090-1208	1.5 mm	35.5 V	17 mm	900 mA	125 °	Square	Chip On Board (COB)	Warm White	2950 lm	Flat	93 lm/W	85 °C	24 mm	20 mm	3000 K	1.8 A	90
Lumileds LHC1-4090-1208	1.5 mm	35.5 V	15 mm	900 mA	100 °	Square	Chip On Board (COB)	Neutral White	3200 lm	Flat	100 lm/W	85 °C	24 mm	20 mm	4000 K	1.8 A	90
Lumileds LHC1-4090-1202	1.5 mm	35.5 V	9 mm	200 mA	115 °	Rectangle	Chip On Board (COB)	White	725 lm	Flat	102 lm/W	85 °C	19 mm	16 mm	4000 K	400 mA	90
Lumileds LHC1-5070-1204	1.5 mm	35.5 V	13 mm	450 mA	100 °	Square	Chip On Board (COB)	Cool White	2050 lm	Flat	130 lm/W	85 °C	24 mm	20 mm	5000 K	900 mA	70	5-Step MacAdam Ellipse
Lumileds LHC1-3570-1203	1.5 mm	35.5 V	9 mm	300 mA	115 °	Square	Chip On Board (COB)	Warm White	1300 lm	Flat	122 lm/W	85 °C	16 mm	19 mm	3500 K	600 mA	70
Lumileds LHC1-2780-1203	1.5 mm	35.5 V	9 mm	300 mA	125 °	Square	Chip On Board (COB)	Warm White	1125 lm	Flat	106 lm/W	85 °C	19 mm	16 mm	2700 K	600 mA	80
Lumileds LHC1-4090-1205	1.5 mm	35.5 V	13 mm	600 mA	100 °	Square	Chip On Board (COB)	Neutral White	2150 lm	Flat	100 lm/W	85 °C	24 mm	20 mm	4000 K	1.2 A	90
Lumileds LHC1-4070-1211	1.5 mm	35.5 V	18.5 mm	1.2 A	115 °	Square	Chip On Board (COB)	Neutral White	5600 lm	Flat	131 lm/W	85 °C	28 mm	28 mm	4000 K		70
Lumileds LHC1-5080-1204	1.5 mm	35.5 V	13 mm	450 mA	125 °	Square	Chip On Board (COB)	Cool White	1975 lm	Flat		85 °C	24 mm	20 mm		900 mA	80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LHC1 Series

LED Lighting COBs Engines Modules Chip On Board (COB) LUXEON CoB White, Warm Square
