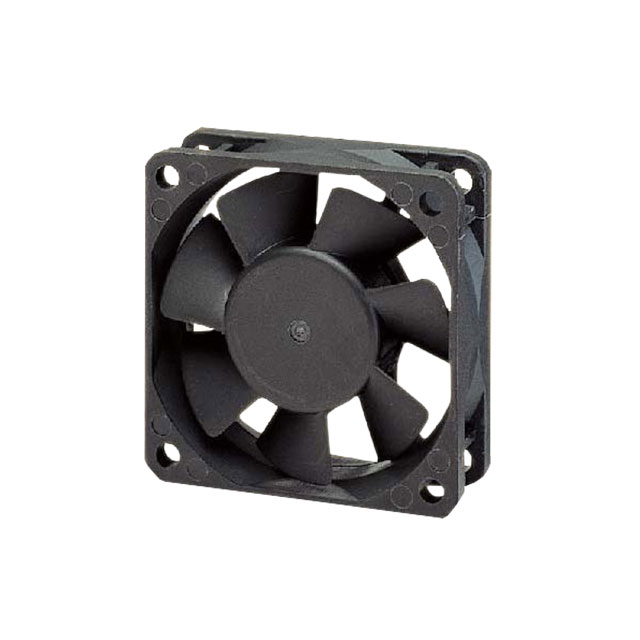

FAD1-06020CHKW11

Active

Qualtek

FAN AXIAL 60X20MM 12VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 60X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Material - Frame	RPM	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Bearing Type	Weight	Weight	Voltage - Rated	Termination	Approval Agency	Power (Watts)	Current Rating (Amps)	Fan Type	Size / Dimension [x]	Size / Dimension [y]	Noise	Air Flow	Air Flow	Static Pressure	Static Pressure
Qualtek FAD1-06020CHKW11	70 °C	70 °C	-10 °C	-10 °C	20 mm	Plastic	6100 RPM	13.2 VDC	10.8 VDC	Plastic	Hydrodynamic	0.108 lb	48.99 g	12 VDC	2 Wire Leads	CE cURus TUV	2.4 W	0.2 A	Tubeaxial	60 mm	60 mm	39 dB(A)	0.658 mł/min	23.5 CFM	70.5 Pa	0.283 in H2O
Qualtek FAD1-06020CHJW11	70 °C	70 °C	-10 °C	-10 °C	20 mm	Plastic	5100 RPM	13.2 VDC	10.8 VDC	Plastic	Hydrodynamic	0.108 lb	48.99 g	12 VDC	2 Wire Leads	CE cURus TUV	1.56 W		Tubeaxial	60 mm	60 mm	35.5 dB	0.529 m³/min	18.9 CFM	45.6 Pa	0.183 in H2O
Qualtek FAD1-06020BHLW11	70 °C	70 °C	-10 °C	-10 °C	20 mm	Plastic	3500 RPM	5.5 V	4.5 V	Plastic	Hydrodynamic	0.108 lb	48.99 g	5 V	2 Wire Leads	CE cURus TUV	600 mW	120 mA	Tubeaxial	60 mm	60 mm	23.5 dB(A)	0.35 m³/min	12.5 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Hydrodynamic 23.5 CFM (0.658m³/min) 2 Wire Leads
