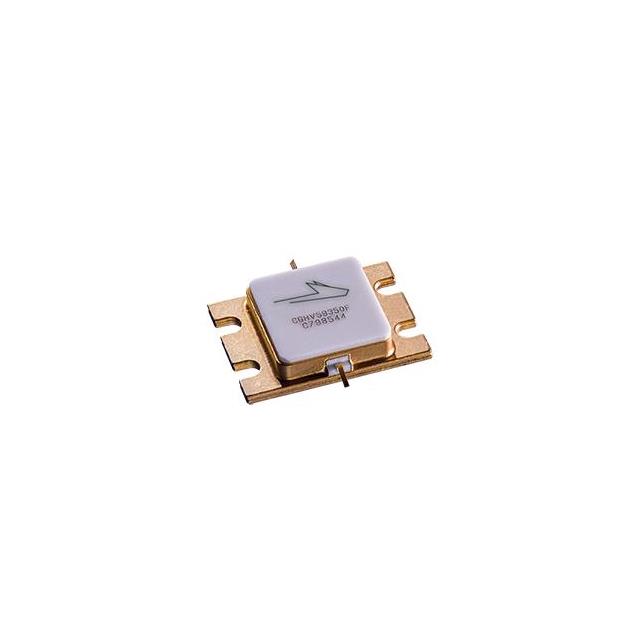

CGHV59350F
ActiveMACOM Technology Solutions
RF MOSFET HEMT 50V 440217
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CGHV59350F
ActiveMACOM Technology Solutions
RF MOSFET HEMT 50V 440217
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CGHV59350F |
|---|---|
| Current - Test | 1 A |
| Current Rating (Amps) | 24 A |
| Frequency [Max] | 5.9 GHz |
| Frequency [Min] | 5.2 GHz |
| Gain | 11.2 dBi |
| Package / Case | 440217 |
| Power - Output | 450 W |
| Supplier Device Package | 440217 |
| Technology | HEMT |
| Voltage - Rated | 125 V |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2329.08 | |
Description
General part information
CGHV59350 Series
RF Mosfet 50 V 1 A 5.2GHz ~ 5.9GHz 11.2dB 450W 440217
Documents
Technical documentation and resources
