JR16WRA-7P(71)

Obsolete

Hirose Electric USA, Inc.

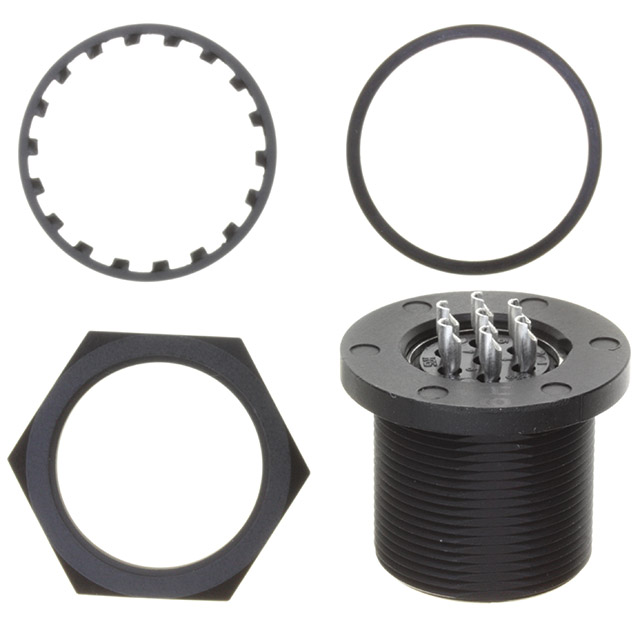

CONN RCPT MALE 7P SILV SLDR CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 7P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR16WRA-7P(71)

Applications	Telecommunications, Industrial, Automotive
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Voltage Rating	100 VAC, 140 VDC

Part	Current Rating (Amps)	Insert Material	Primary Material	Color	Number of Positions	Connector Type	Mounting Feature	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Contact Material	Voltage Rating	Shell Material	Contact Finish - Mating	Shell Finish	Orientation	Applications	Shell Size - Insert
Hirose Electric USA, Inc. JR16WRA-7P(71)	10 A	Phenol Formaldehyde (PF)	Metal	Black	7	Male Pins Receptacle	Bulkhead - Front Side Nut	UL94 V-0	-25 °C	85 °C	78.7 µin	2 µm	IP67/IP68 - Dust Tight Waterproof	Copper Alloy	100 VAC 140 VDC	Aluminum Alloy	Silver	Black Chromium	Keyed	Automotive Industrial Telecommunications	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
