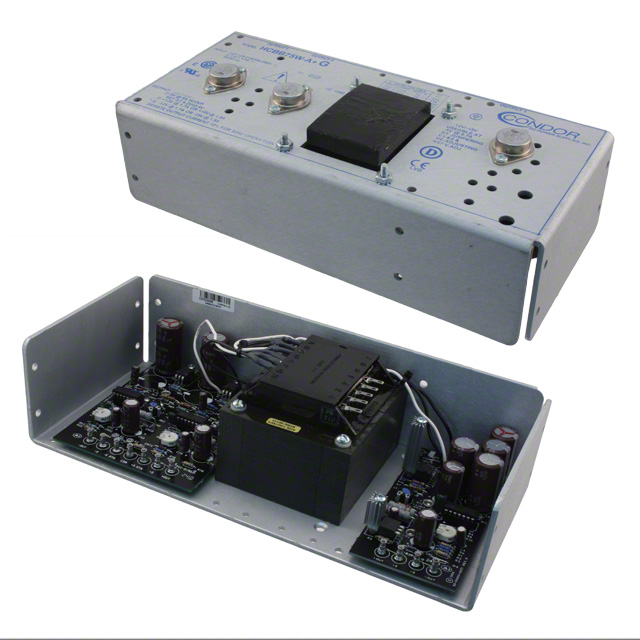

HCBB75W-A+G

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/12V TO 15V/-12V TO 15V 6A/1.7A/1.7A 288W CASE CBB

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/12V TO 15V/-12V TO 15V 6A/1.7A/1.7A 288W CASE CBB

Technical Specifications

Parameters and characteristics for this part

Specification	HCBB75W-A+G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	6 A
Current - Output 2	1.7 A
Current - Output 3	1.7 A
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	71 W
Size / Dimension [x]	11 in
Size / Dimension [x]	279.4 mm
Size / Dimension [y]	4.88 in
Size / Dimension [y]	124 mm
Size / Dimension [z]	69.9 mm
Size / Dimension [z]	2.75 in
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

Part	Features	Power (Watts)	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Current - Output 2	Applications	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Voltage - Output 1	Current - Output 3	Voltage - Output 3
SL POWER / Advanced Energy HCBB75W-A+G	Adjustable Output Remote Sense Universal Input	71 W	Chassis Mount	4.88 in	69.9 mm	11 in	124 mm	2.75 in	279.4 mm	Linear	12 V	70 °C	0 °C	6 A	1.7 A	ITE (Commercial)	CE cURus TUV	240 VAC	100 VAC	3	5 V	1.7 A	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
