19-289.015

Active

EAO

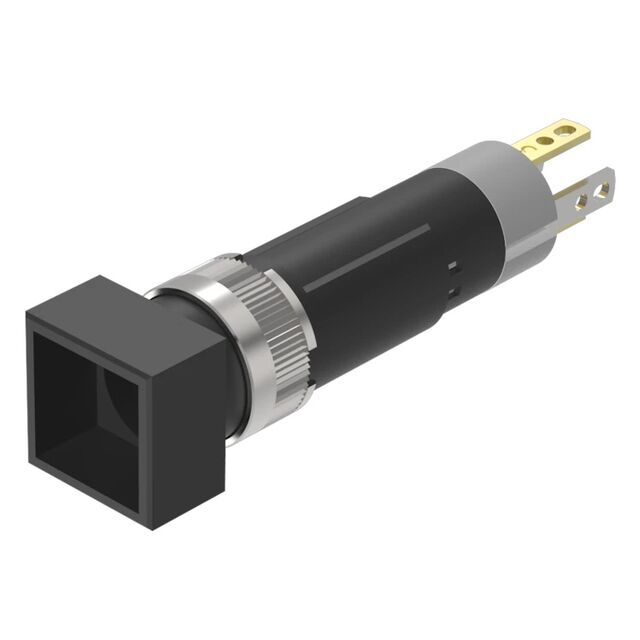

PUSHBUTTON SWITCH, 19 SERIES, 8 MM, SPST-NO, MAINTAINED, SQUARE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

19-289.015

Active

EAO

PUSHBUTTON SWITCH, 19 SERIES, 8 MM, SPST-NO, MAINTAINED, SQUARE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19-289.015

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	800 mA
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-On
Termination Style	Quick Connect, Solder
Termination Style	2 mm
Termination Style	0.079 in
Type	Standard
Voltage Rating - AC	50 V

19-289 Series

Part	Voltage Rating - AC	Ingress Protection	Actuator Marking	Actuator Type	Termination Style	Termination Style	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Mounting Type	Circuit	Current Rating (Amps)	Type	Panel Cutout Dimensions [diameter]
EAO 19-289.015	50 V	IP40	No Marking	Square Button (Not Included)	Quick Connect Solder	2 mm	0.079 in	65 °C	-25 °C	2000000 Cycles	Off-On	Panel Mount Front	SPST-NO	800 mA	Standard	8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.77
		10	$ 21.59
		100	$ 18.80
Newark	Each	1	$ 25.32
		5	$ 23.31
		10	$ 21.54
		25	$ 20.53
		50	$ 19.51

Description

General part information

19-289 Series

The 19-289.015 is an illuminated Pushbutton Actuator with solder terminals. This Ø8mm cut-out mounting actuator has 9 x 9mm red square front shape. This maintained actuator features 1 NO snap-action switching element and silver contacts.
