EV5611-QT-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

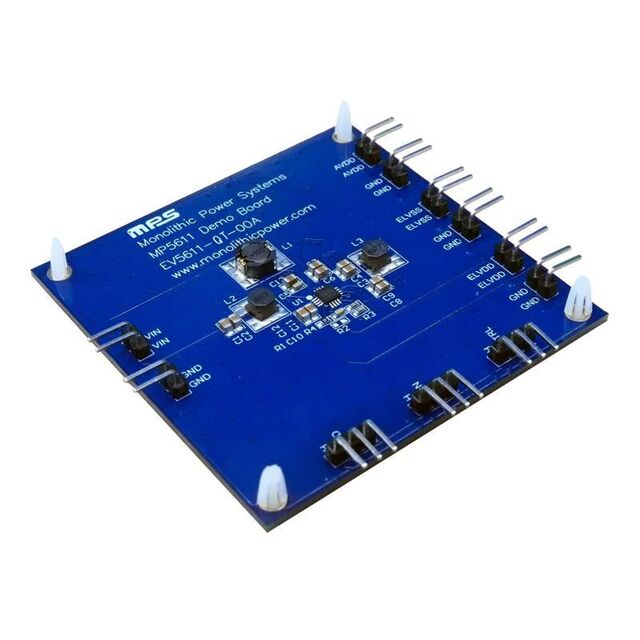

EVAL BOARD FOR MP5611

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP5611

Technical Specifications

Parameters and characteristics for this part

Specification	EV5611-QT-00A

Board Type	Fully Populated
Current - Output	100 mA, 500 mA
Main Purpose	Special Purpose DC/DC, OLED Supply
Outputs and Type	Non-Isolated
Outputs and Type	3
Regulator Topology	Buck-Boost
Supplied Contents	Board(s)
Utilized IC / Part	MP5611
Voltage - Input [Max]	5.2 V
Voltage - Input [Min]	2.9 V
Voltage - Output	-4 V, 5.8 V, 4.6 V

Part	Voltage - Output	Regulator Topology	Outputs and Type	Outputs and Type	Main Purpose	Supplied Contents	Current - Output	Board Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]
MONOLITHIC POWER SYSTEMS (MPS) EV5611-QT-00A	-4 V 4.6 V 5.8 V	Buck-Boost	Non-Isolated	3	Special Purpose DC/DC OLED Supply	Board(s)	100 mA 500 mA	Fully Populated	MP5611	2.9 V	5.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.00

General part information

MP5611 - Special Purpose DC/DC, OLED Supply 3, Non-Isolated Outputs Evaluation Board
