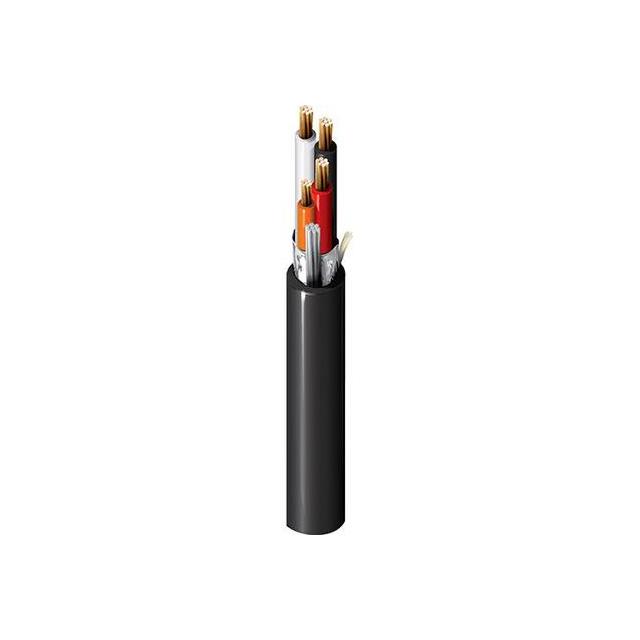

1489A 0105000 - 1084A 0107500

1489A 0105000

Active
Belden Inc.

MULTI-PAIR 49COND 16/22AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCabling Solutions for Industrial Applications
1489A 0105000 - 1084A 0107500

1489A 0105000

Active
Belden Inc.

MULTI-PAIR 49COND 16/22AWG

Deep-Dive with AI

DocumentsDatasheetCabling Solutions for Industrial Applications

Technical Specifications

Parameters and characteristics for this part

Specification1489A 0105000
Cable TypeMulti-Pair
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Bare
Conductor Strand [custom]7
Conductor Strand [custom]30 AWG
Conductor Strand [custom]7
Conductor Strand [custom]24 AWG
FeaturesRip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]26.9 mm
Jacket (Insulation) Diameter [diameter]1.059 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness0.074 in
Jacket (Insulation) Thickness1.88 mm
Jacket ColorBlack
Number of Conductors49
Number of Conductors24.5 pair
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-30 ░C
RatingsUL Style 2464
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
UsageInstrumentation
Voltage300 V
Wire Gauge22 AWG, 16 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 5000$ 16.69

Description

General part information

1489A Series

49 (24.5 Pair) Conductor Multi-Pair Cable Black 16 AWG, 22 AWG Foil 5000' (1524.0m)
