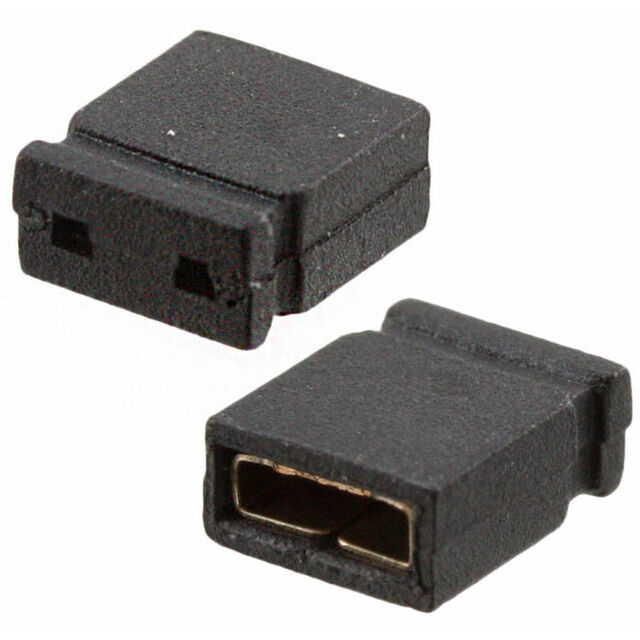

SPC02SVGN-RC

Active

Sullins Connector Solutions

CONN JUMPER SHORTING .100" GOLD

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN JUMPER SHORTING .100" GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	SPC02SVGN-RC

Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	5.97 mm
Height [z]	0.235 in
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top

Part	Current Rating (Amps)	Gender	Pitch [x]	Pitch [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish	Housing Material	Type	Material Flammability Rating	Height [z]	Height [z]	Contact Finish Thickness
Sullins Connector Solutions SPC02SXIN-RC	3 A	Female Sockets	2.54 mm	0.1 in	1 x 2	2	Gold	Polybutylene Terephthalate (PBT)	Open Top	UL94 V-0	8 mm	0.315 in	Flash
Sullins Connector Solutions SPC02SVDN-RC	3 A	Female Sockets	2.54 mm	0.1 in	1 x 2	2	Gold	Polybutylene Terephthalate (PBT)	Closed Top	UL94 V-0	4.6 mm	0.181 in	Flash
Sullins Connector Solutions SPC02SVGN-RC	3 A	Female Sockets	2.54 mm	0.1 in	1 x 2	2	Gold	Polybutylene Terephthalate (PBT)	Closed Top	UL94 V-0	5.97 mm	0.235 in	Flash
Sullins Connector Solutions SPC02SVKN-RC	3 A	Female Sockets	2.54 mm	0.1 in	1 x 2	2	Gold	Polybutylene Terephthalate (PBT)	Closed Top	UL94 V-0	8.99 mm	0.354 in	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Closed Top 0.100" (2.54mm) Gold

Technical documentation and resources

No documents available
